HOISTING-GRIP-SERIES

Base Product

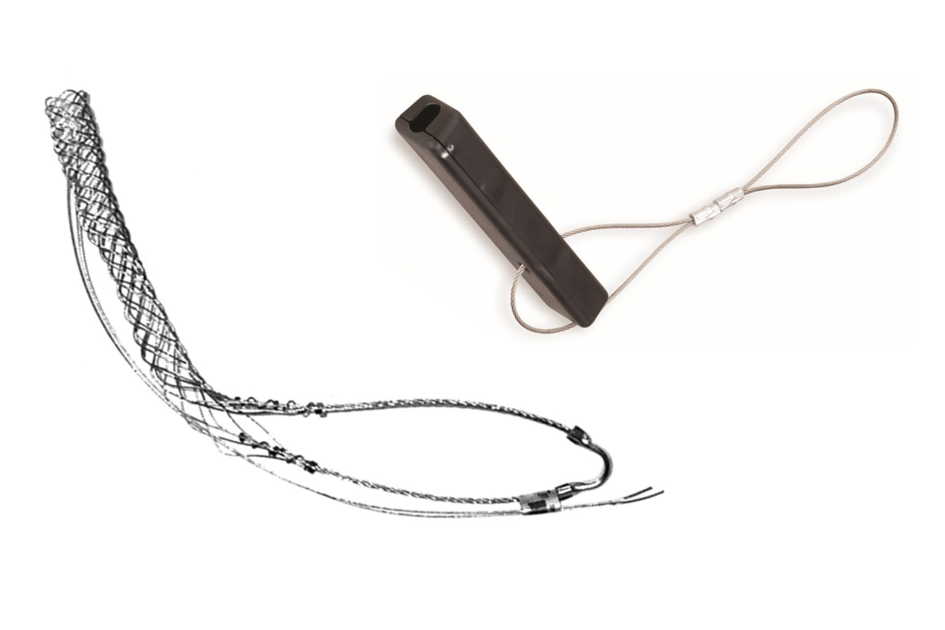

Standard Hoisting Grips

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of HOISTING-GRIP-SERIES by selecting options

Product	Product Brand	Product Type	Hoisting Grip Type	Nominal Size	Compatible Diameter, maximum	Compatible Diameter, minimum
19256B Lace-up Hoisting Grip for HELIAX® 1.00-1.24 in (25.4-31.5 mm) cables, elliptical waveguide 77 Specifications	HELIAX®	Hoisting grip	Lace-up hoisting grip	7/8 in	31.5 mm \| 1.240 in	25.4 mm \| 1.000 in
19256B-C Lace-up Hoisting Grip with tie wrap for HELIAX® 1.00-1.24 in (25.4-31.5 mm) cables, elliptical waveguide 77 Specifications	HELIAX®	Hoisting grip	Lace-up hoisting grip	7/8 in	31.5 mm \| 1.240 in	25.4 mm \| 1.000 in
24312A Lace-up Hoisting Grip for HELIAX® 1.75-1.99 in (44.5-50.5 mm) cables and elliptical waveguide 43, 52, and 63 Specifications	HELIAX®	Hoisting grip	Lace-up hoisting grip	1-5/8 in	50.5 mm \| 1.988 in	44.5 mm \| 1.752 in
29958 Lace-up Hoisting Grip for HELIAX® 0.75-0.99 in (19-25.1 mm) cables and elliptical waveguide 85, 90, 127A, 132-144, PWRT-606-S Specifications	HELIAX®	Hoisting grip	Lace-up hoisting grip	5/8 in	25.1 mm \| 0.988 in	19 mm \| 0.748 in
29958-C Lace-up Hoisting Grip with cable tie for HELIAX® 0.75-0.99 in (19-25.1 mm) cables and elliptical waveguide 85, 90, 127A, 132-144, PWRT-606-S Specifications	HELIAX®	Hoisting grip	Lace-up hoisting grip	5/8 in	25.1 mm \| 0.988 in	19 mm \| 0.748 in
29961 Lace-up Hoisting Grip for HELIAX® 1.50-1.74 in (38.1-44.2 mm) cables and elliptical waveguide 64 Specifications	HELIAX®	Hoisting grip	Lace-up hoisting grip	1-1/4 in	44.2 mm \| 1.740 in	38.1 mm \| 1.500 in
29961-C Lace-up Hoisting Grip with cable tie for HELIAX® 1.50-1.74 in (38.1-44.2 mm) cables and elliptical waveguide 64 Specifications	HELIAX®	Hoisting grip	Lace-up hoisting grip	1-1/4 in	44.2 mm \| 1.740 in	38.1 mm \| 1.500 in
31535 Lace-up Hoisting Grip for HELIAX® 1.50-1.74 in (38.1-63.5 mm) cables and elliptical waveguide 37 Specifications	HELIAX®	Hoisting grip	Lace-up hoisting grip	2-1/4 in	63.5 mm \| 2.500 in	50.8 mm \| 2.000 in
