DHK-SERIES-HANGER-BLOCKS

Base Product

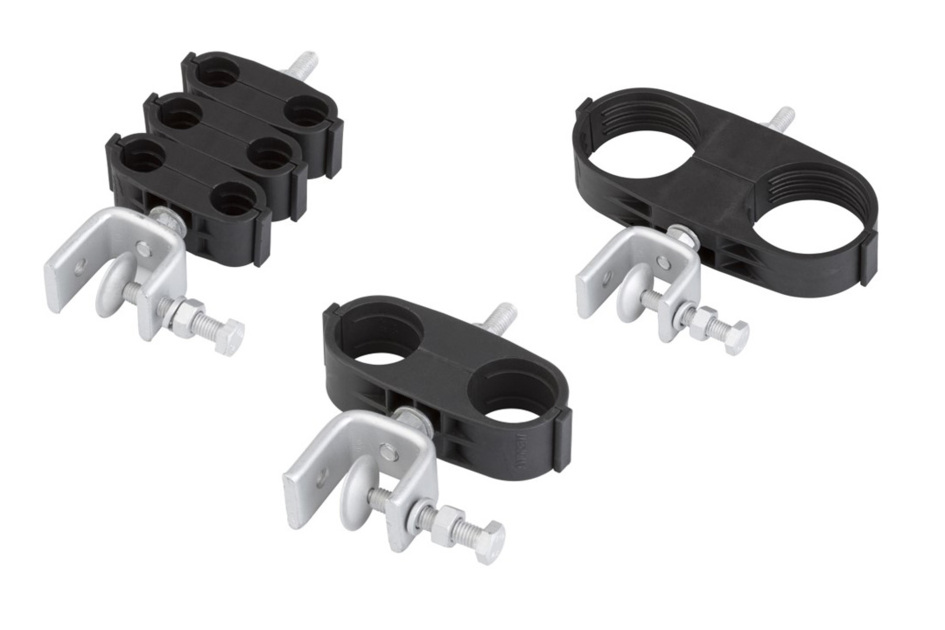

DHK Series Double Hanger Kits

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of DHK-SERIES-HANGER-BLOCKS by selecting options

Product	Product Brand	Product Type	Material Type	Hanger Type	Mounting	Compatible Cable Diameter Range	Nominal Size	Maximum Stack Height
DHK-12-6-P Double Hanger Kit for 1/2 in coaxial cable, triple stack; includes hardware and angle adapter Specifications	ValuSite™	Hanger kit	Engineered plastic \| Stainless steel	Composite clamp	M8 hardware	15.2–16.3 mm	1/2 in	3
DHK-158-2-P Double Hanger Kit for 1-5/8 in coaxial cable, single stack; includes hardware and angle adapter Specifications	ValuSite™	Hanger kit	Engineered plastic \| Stainless steel	Composite clamp	M8 hardware	49–51.1 mm	1-5/8 in	1
DHK-158-6-P Double Hanger Kit for 1-5/8 in coaxial cable, triple stack; includes hardware and angle adapter Specifications	ValuSite™	Hanger kit	Engineered plastic \| Stainless steel	Composite clamp	M8 hardware	49–51.1 mm	1-5/8 in	3
DHK-78-6-P Double Hanger Kit for 7/8 in coaxial cable, triple stack; includes hardware and angle adapter Specifications	ValuSite™	Hanger kit	Engineered plastic \| Stainless steel	Composite clamp	M8 hardware	27.7–28.2 mm	7/8 in	3

Specifications

Product Classification

Product Type

Hanger kit

General Specifications

Color	Black
Hanger Type	Composite clamp
Mounting	M8 hardware

Material Specifications

Material Type

Engineered plastic | Stainless steel

Mechanical Specifications

Vibration Survival

≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
Corrosion Resistance, minimum with no degredation	≥500 hours in salt spray chamber
Environmental Strength Capability	Double cable weight
UV Resistance, minimum with no degradation	≥100 hours exposure in accelerated UV life chamber
