OCP Series Singlemode Fiber Optic Pigtail
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits

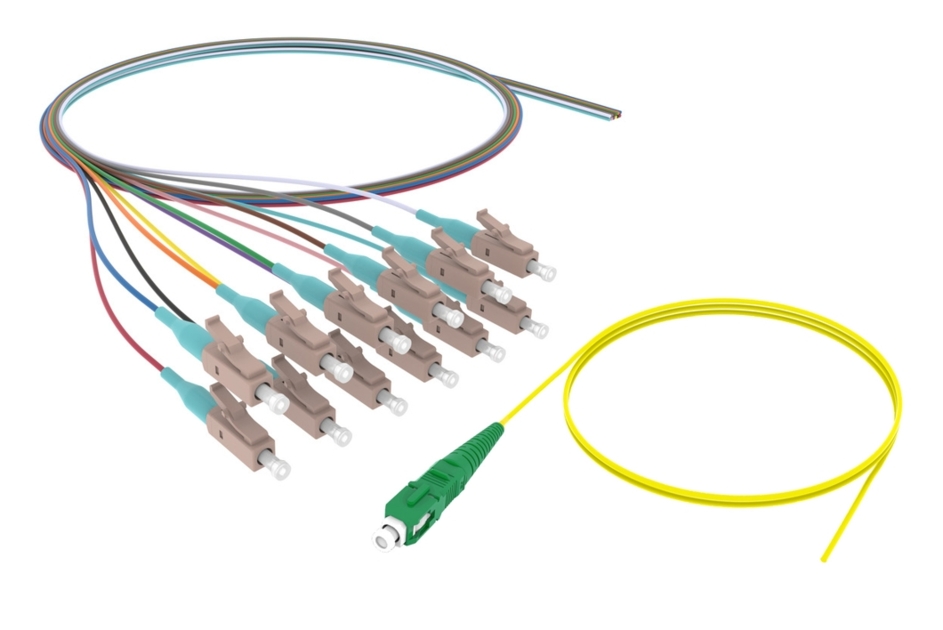

OCP Pigtails are simplex or multi fiber cables pre-assembled with a connector at one end. They are typically used to connect patch panels to splice panels or splice trays.
FEATURES
FEATURES
- CommScope offers two ranges of cable assembly specifications according to IEC 61755-1
- Grade C as a standard quality for use in data centers and telecommunication networks
- Grade B as a superior quality if lower attenuation (Insertion) losses are required, for example to cover extra distance
- All connectors are built with full ceramic ferrules and tuned for best performance and compatibility according to IEC 61755-3-1 and -3-2
- CommScope’s standard single mode fiber is according to ITU-T G.657.A1 ( MFD 9.2 µm ± 0.4 µm) and G.657.A2 (MFD 8.6 µm ± 0.4 µm ) If other fiber types or MFD (Mode Field Diameter ) are required, please contact your CommScope representative
Specifications
Product Classification
| Regional Availability | Europe | Middle East/Africa |
| Product Type | Fiber pigtail, jacketed | Fiber pigtail, unjacketed |
| Product Series | OCP |
Dimensions
| Cable Assembly Length Range (m) | 1 – 30 |
Ordering Tree
| Click on image to enlarge. | |
| Click on image to enlarge. |
Optical Performance
| Click on image to enlarge. |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A1, TeraSPEED® |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space | Low Smoke Zero Halogen (LSZH) |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Regional Availability | Europe | Middle East/Africa |
| Product Type | Fiber pigtail, jacketed | Fiber pigtail, unjacketed |
| Product Series | OCP |
Dimensions
| Cable Assembly Length Range (m) | 1 – 30 |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A1, TeraSPEED® |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space | Low Smoke Zero Halogen (LSZH) |
Packaging and Weights
| Packaging quantity | 1 |
| Click on image to enlarge. |
| Click on image to enlarge. | |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
