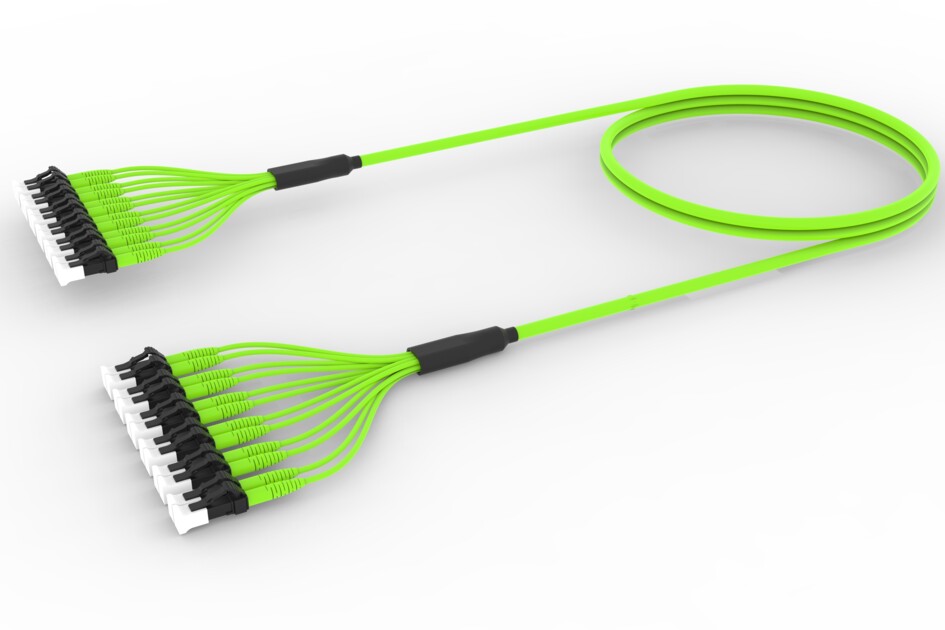

Ultra Low Loss (ULL) OM5 LC/UPC to LC/UPC Fanout Cable, 12-Fiber, Plenum

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Variants

Configure and display product variants of UQVLCLCGD by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Part Number Jacket Color Breakout Length/Option Cord Length
No configured items found.

Product Classification

Regional Availability Asia | Australia/New Zealand | China | Europe | India | Latin America | Middle East/Africa | North America
Portfolio CommScope®
Product Type Fiber array cable assembly
Product Brand SYSTIMAX ULL
Ordering Note For lengths greater than 999 ft (304 m), orders must be in meters | Minimum length may vary based on cable configuration

General Specifications

Color, boot A Lime green
Color, connector A Black
Color, boot B Lime green
Color, connector B Black
Construction Type Stranded
Furcation Color Lime green
Interface, Connector A LC/UPC
Interface, Connector B LC/UPC
Jacket Color Lime green
Fibers per Subunit, quantity 12
Total Fibers, quantity 12

Dimensions

Cable Assembly Length Range (m) 3 – 305
Cable Assembly Length Range (ft) 10 – 999
Diameter Over Jacket 3 mm | 0.118 in

Ordering Tree

Click on image to enlarge.

Mechanical Specifications

Cable Retention Strength, maximum 11.24 lb @ 0 ° | 4.40 lb @ 90 °

Optical Specifications

Fiber Mode Multimode
Fiber Type OM5, LazrSPEED®

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Environmental Space Indoor | Plenum

Regulatory Compliance/Certifications

Agency Classification
ANATEL Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | China | Europe | India | Latin America | Middle East/Africa | North America
Portfolio CommScope®
Product Type Fiber array cable assembly
Product Brand SYSTIMAX ULL
Ordering Note For lengths greater than 999 ft (304 m), orders must be in meters | Minimum length may vary based on cable configuration

General Specifications

Color, boot A Lime green
Color, connector A Black
Color, boot B Lime green
Color, connector B Black
Construction Type Stranded
Furcation Color Lime green
Interface, Connector A LC/UPC
Interface, Connector B LC/UPC
Jacket Color Lime green
Fibers per Subunit, quantity 12
Total Fibers, quantity 12

Dimensions

Cable Assembly Length Range (m) 3 – 305
Cable Assembly Length Range (ft) 10 – 999
Diameter Over Jacket 3 mm | 0.118 in

Mechanical Specifications

Cable Retention Strength, maximum 11.24 lb @ 0 ° | 4.40 lb @ 90 °

Optical Specifications

Fiber Mode Multimode
Fiber Type OM5, LazrSPEED®

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Environmental Space Indoor | Plenum
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ANATEL Compliant
