Warning Icon
This product was discontinued on: November 30, 2023

For other alternatives, please contact us for more information.

1 Replacement products available
  • NNVVSS-360M-F3
    12-port quasi-omni antenna, 4x 698-896, 4x1695-2690 and 4x 3100-4000MHz, 360° horizontal beamwidth, Fixed tilt.

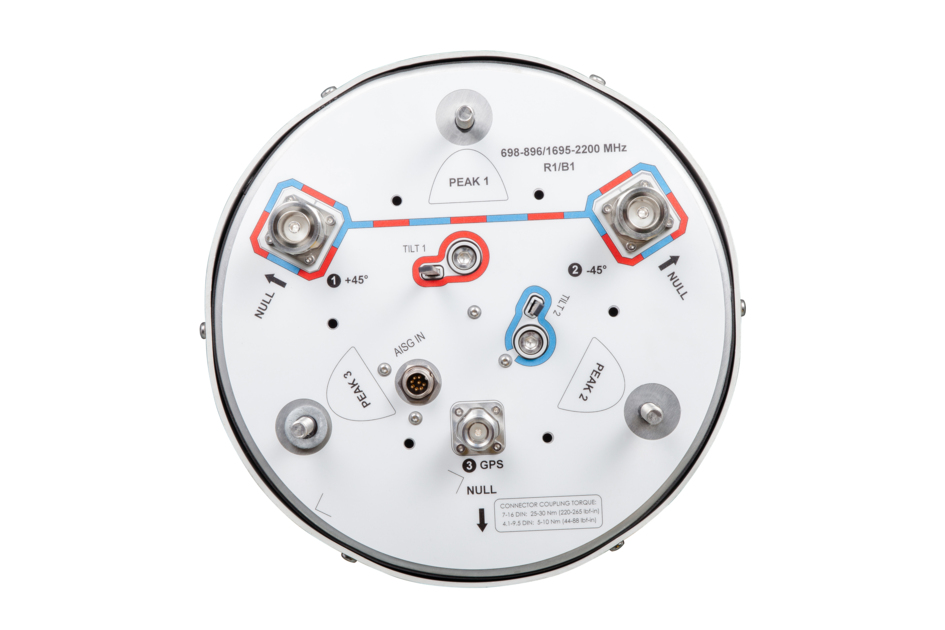

NH360QM-DG-2XR

2-port small cell antenna, 2x (698-896 and 1695–2200 MHz), 360° HPBW, 2x RET with manual override, internal diplexer and active GPS L1 band antenna

Specifications
Finish making your selections or clear them to view relevant specifications.
Download

General Specifications

Antenna Type Small Cell
Band Multiband
Color Light Gray (RAL 7035)
GPS Connector Interface 4.1-9.5 DIN Female
GPS Connector Quantity 1
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Internal GPS frequency band 1575.42 MHz
Internal GPS VSWR 2
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material ASA, UV stabilized
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, diplexed low and mid bands 2
RF Connector Quantity, total 2

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Male
RET Interface, quantity 1 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Multi-RET)

Dimensions

Length 982 mm | 38.661 in
Net Weight, without mounting kit 15.3 kg | 33.731 lb
Outer Diameter 305 mm | 12.008 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2200 MHz
Polarization ±45°
Total Input Power, maximum 400 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200
Gain, dBi 6.1 7.1 9.7 9.9 9.9
Beamwidth, Horizontal, degrees 360 360 360 360 360
Beamwidth, Vertical, degrees 28.6 25.4 11.2 10.6 10.1
Beam Tilt, degrees 0–20 0–20 0–14 0–14 0–14
USLS (First Lobe), dB 16 15 14 13 13
Isolation, Cross Polarization, dB 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153
Input Power per Port, maximum, watts 125 125 125 125 125

Mechanical Specifications

Wind Loading @ Velocity, frontal 167.0 N @ 150 km/h (37.5 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 167.0 N @ 150 km/h (37.5 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 167.0 N @ 150 km/h (37.5 lbf @ 150 km/h)
Wind Speed, maximum 200 km/h (124 mph)

Packaging and Weights

Width, packed 427 mm | 16.811 in
Depth, packed 407 mm | 16.024 in
Length, packed 1251 mm | 49.252 in
Weight, gross 20.6 kg | 45.415 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
