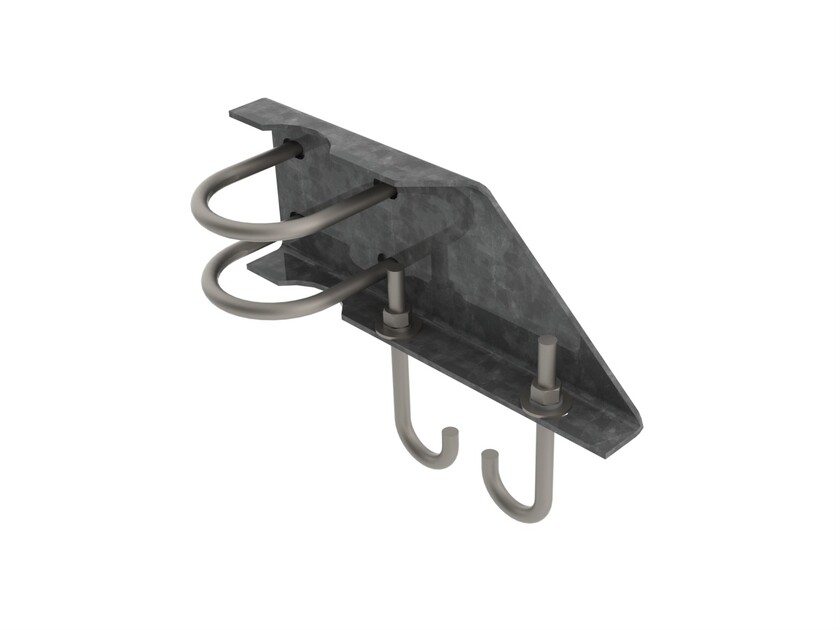

WB-LB05-3
Waveguide Bridge Support Bracket, 5 in wide for 3-1/2 in OD legs
Specifications
Product Classification
| Product Type | Support bracket |
General Specifications
| Application | Waveguide bridge kit, 5 in |
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 127 mm | 5 in |
| Length | 127 mm | 5 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, net | 3.7 kg | 8.157 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Product Type | Support bracket |
General Specifications
| Application | Waveguide bridge kit, 5 in |
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 127 mm | 5 in |
| Length | 127 mm | 5 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, net | 3.7 kg | 8.157 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
