CS-BRL

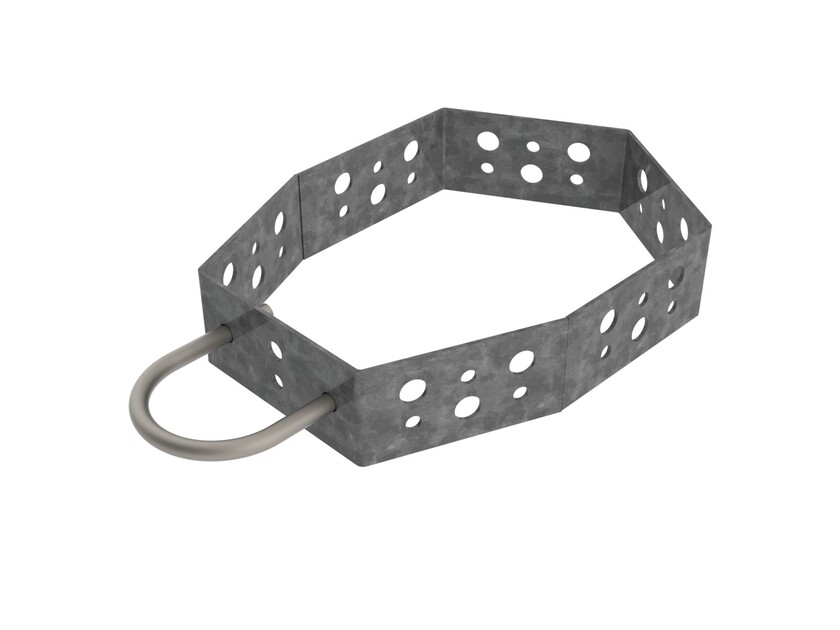

Cluster Support Bracket, 18 lines, for 3-1/2 in OD round members

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Support bracket

General Specifications

Application Cluster support
Cable Runs, quantity 18
Mounting Pipe, 88.9 mm (3-1/2 in) OD

Dimensions

Height 4000.5 mm | 157.5 in
Width 279.4 mm | 11 in
Length 381 mm | 15 in
Pipe Outer Diameter 88.9 mm | 3.5 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Hardware | Support brackets
Packaging quantity 1
Weight, net 2.3 kg | 5.071 lb

Product Classification

Product Type Support bracket

General Specifications

Application Cluster support
Cable Runs, quantity 18
Mounting Pipe, 88.9 mm (3-1/2 in) OD

Dimensions

Height 4000.5 mm | 157.5 in
Width 279.4 mm | 11 in
Length 381 mm | 15 in
Pipe Outer Diameter 88.9 mm | 3.5 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Hardware | Support brackets
Packaging quantity 1
Weight, net 2.3 kg | 5.071 lb
