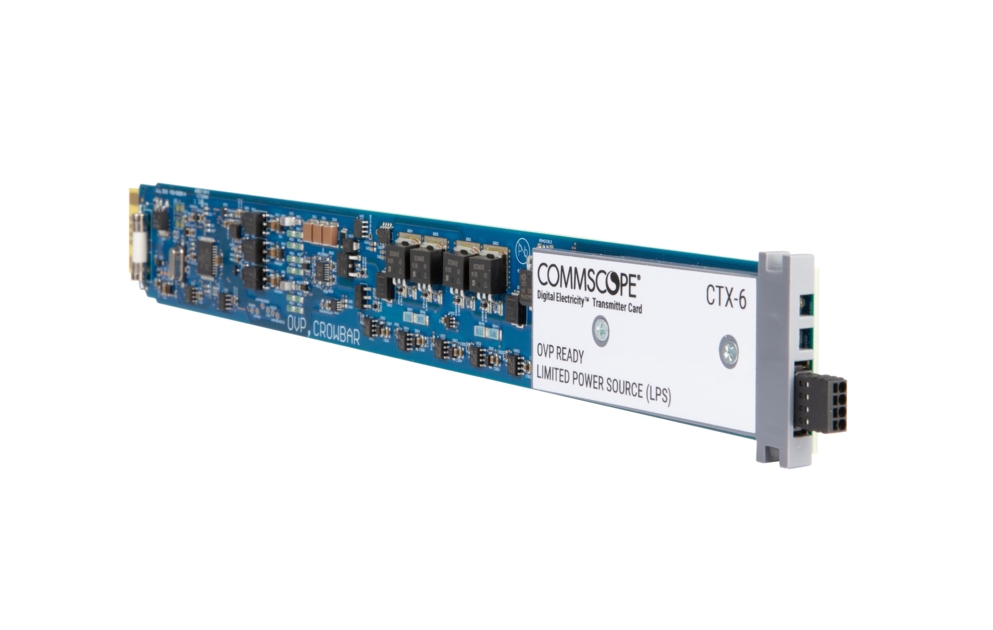

760254288 | CTX-6

  • Available in:
  • North America

Constellation™ Transmitter Card, 600 W, fault managed power delivery card interface between the CPCX-12 and the power delivery cabling. Up to 24 can be loaded into the CPCX-12

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability North America
Portfolio SYSTIMAX®
Product Type Power transmitter card
Product Brand Constellation™

General Specifications

Color Gray
Rack Units 1
Standards CISPR 32 IEC/EN 55032 | EN 300 386 v2.1.1 | EN 50121-4 | FCC Part 15B Class A

Dimensions

Height 14.48 mm | 0.570 in
Width 38.2 mm | 1.504 in
Depth 338.9 mm | 13.343 in
Length 338.9 m | 13.343 in

Electrical Specifications

Output Current, maximum 3 A
Output Power, maximum 600 W
Output Voltage 336 Vdc

Material Specifications

Material Type Molded plastic

Environmental Specifications

Operating Temperature -20 °C to +50 °C (-4 °F to +122 °F)
Storage Temperature -20 °C to +70 °C (-4 °F to +158 °F)
Relative Humidity 5%–95%, non-condensing
Environmental Space Indoor
Safety Standard IEC 62368-1

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
