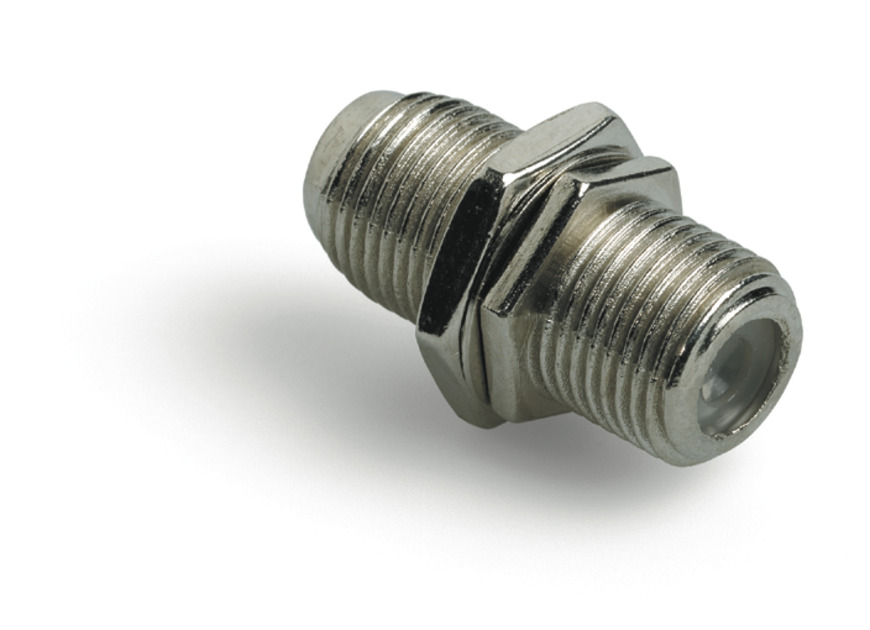

M81C Coaxial Coupler
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • Comes with 4 mounting collars - white, gray, black & ivory
Specifications

Product Classification

Regional Availability Australia/New Zealand | Latin America | North America | Asia | EMEA
Portfolio CommScope®
Product Type Multimedia coupler

General Specifications

Application Module designed for video applications
Mounting Snap-in

Dimensions

Height 0.69 in | 17.526 mm
Width 0.73 in | 18.542 mm
Depth 0.5 in | 12.7 mm

Electrical Specifications

Insertion Loss at Frequency Band, maximum 0.3 dB @ 1002–3000 MHz | 0.2 dB @ 0–1002 MHz
Return Loss at Frequency Band, maximum 25 dB @ 1002–2000 MHz | 20 dB @ 2000–3000 MHz | 35 dB @ 0–1002 MHz
Impedance 75 ohm
Operating Frequency Band 0 – 3000 MHz
Shielding Effectiveness, minimum 120 dB

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity 5%–95%, non-condensing

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHS ROHSCompliant
CHINA-ROHS CHINA-ROHSBelow maximum concentration value
REACH-SVHC REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Regional Availability Australia/New Zealand | Latin America | North America | Asia | EMEA
Portfolio CommScope®
Product Type Multimedia coupler

General Specifications

Application Module designed for video applications
Mounting Snap-in

Dimensions

Height 0.69 in | 17.526 mm
Width 0.73 in | 18.542 mm
Depth 0.5 in | 12.7 mm

Electrical Specifications

Insertion Loss at Frequency Band, maximum 0.3 dB @ 1002–3000 MHz | 0.2 dB @ 0–1002 MHz
Return Loss at Frequency Band, maximum 25 dB @ 1002–2000 MHz | 20 dB @ 2000–3000 MHz | 35 dB @ 0–1002 MHz
Impedance 75 ohm
Operating Frequency Band 0 – 3000 MHz
Shielding Effectiveness, minimum 120 dB

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity 5%–95%, non-condensing

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHS ROHSCompliant
CHINA-ROHS CHINA-ROHSBelow maximum concentration value
REACH-SVHC REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance
