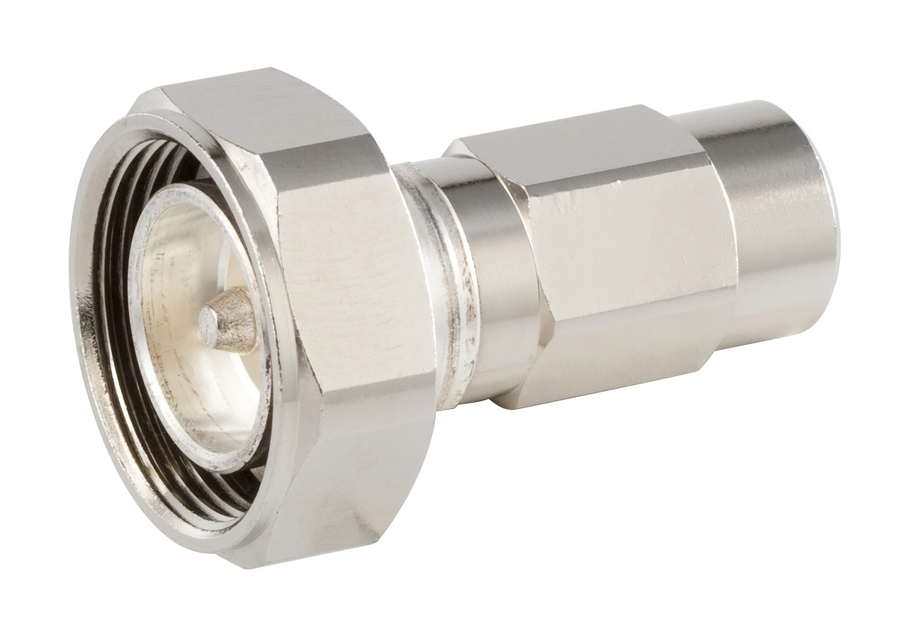

SFX-ADM
7-16 DIN Male for 1/2 in SFX-500 cable
Specifications
Specifications
Product Classification
| Product Type | Wireless and radiating connector |
General Specifications
| Body Style | Straight |
| Cable Family | SFX-500 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
| Outer Contact Attachment Method | Radial compression |
| Outer Contact Plating | Silver |
| Pressurizable | No |
Dimensions
| Width | 36.07 mm | 1.420 in |
| Length | 51.05 mm | 2.010 in |
| Diameter | 36.07 mm | 1.420 in |
| Nominal Size | 1/2 in |
Electrical Specifications
| 3rd Order IMD at Frequency | -115 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Return Loss Note | Measurements taken using a .9 m (3 ft) jumper assembly |
| Average Power at Frequency | 870.0 W @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2500 V |
| Inner Contact Resistance, maximum | 1.5 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 0.4 mOhm |
| Peak Power, maximum | 15.6 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
| Shielding Effectiveness | 110 dB |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 0.05–1.0 GHz | 1.050 | 32.26 |
| 1.0–2.0 GHz | 1.080 | 28.30 |
| 2.0–2.5 GHz | 1.100 | 26.45 |
| 2.5–5.0 GHz | 1.290 | 18.00 |
| 5.0–6.0 GHz | 1.380 | 16.00 |
Mechanical Specifications
| Connector Retention Tensile Force | 889.64 N | 200.000 lbf |
| Connector Retention Torque | 2.03 N-m | 18.002 in lb |
| Coupling Nut Proof Torque | 50 N-m | 442.537 in lb |
| Coupling Nut Proof Torque Method | IEC 61169-4:9.3.6 |
| Coupling Nut Retention Force | 1000 N | 224.810 lbf |
| Coupling Nut Retention Force Method | IEC 61169-4:15.2.6 |
| Insertion Force | 199.99 N | 44.960 lbf |
| Insertion Force Method | IEC 61169-4:15.2.4 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +100 °C (-85 °F to +212 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 86 g | 0.19 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Wireless and radiating connector |
General Specifications
| Body Style | Straight |
| Cable Family | SFX-500 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
| Outer Contact Attachment Method | Radial compression |
| Outer Contact Plating | Silver |
| Pressurizable | No |
Dimensions
| Width | 36.07 mm | 1.420 in |
| Length | 51.05 mm | 2.010 in |
| Diameter | 36.07 mm | 1.420 in |
| Nominal Size | 1/2 in |
Electrical Specifications
| 3rd Order IMD at Frequency | -115 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Return Loss Note | Measurements taken using a .9 m (3 ft) jumper assembly |
| Average Power at Frequency | 870.0 W @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2500 V |
| Inner Contact Resistance, maximum | 1.5 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 0.4 mOhm |
| Peak Power, maximum | 15.6 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
| Shielding Effectiveness | 110 dB |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 0.05–1.0 GHz | 1.050 | 32.26 |
| 1.0–2.0 GHz | 1.080 | 28.30 |
| 2.0–2.5 GHz | 1.100 | 26.45 |
| 2.5–5.0 GHz | 1.290 | 18.00 |
| 5.0–6.0 GHz | 1.380 | 16.00 |
Mechanical Specifications
| Connector Retention Tensile Force | 889.64 N | 200.000 lbf |
| Connector Retention Torque | 2.03 N-m | 18.002 in lb |
| Coupling Nut Proof Torque | 50 N-m | 442.537 in lb |
| Coupling Nut Proof Torque Method | IEC 61169-4:9.3.6 |
| Coupling Nut Retention Force | 1000 N | 224.810 lbf |
| Coupling Nut Retention Force Method | IEC 61169-4:15.2.6 |
| Insertion Force | 199.99 N | 44.960 lbf |
| Insertion Force Method | IEC 61169-4:15.2.4 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +100 °C (-85 °F to +212 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 86 g | 0.19 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
