A-100324

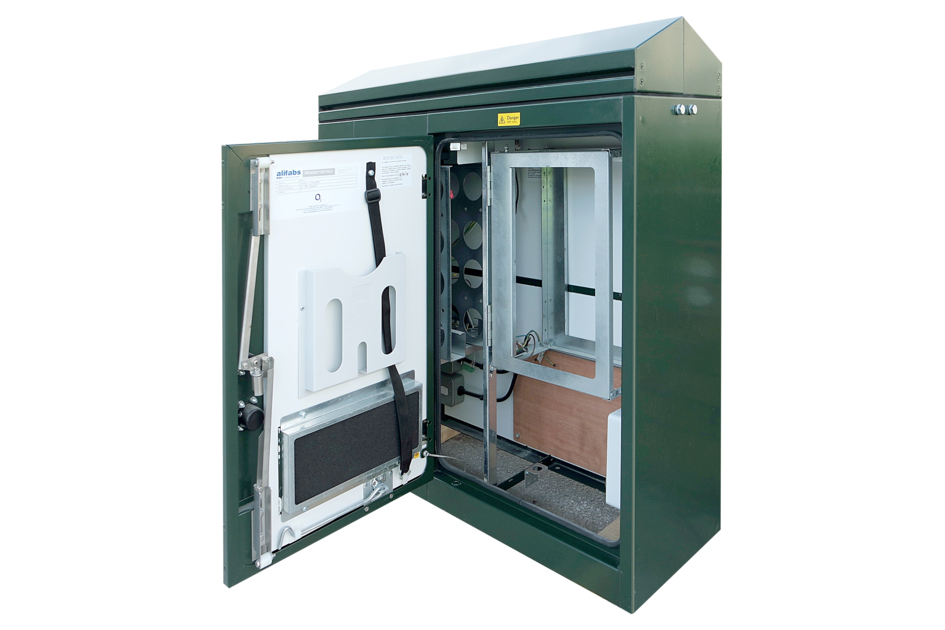

Mini G Cabinet
Features and Benefits
- Sealed to outside environment
- Double wall construction
Specifications
Product Classification
| Product Type | Micro cell site enclosure |
| Ordering Note | For UK region only |
General Specifications
| Access | Front door | Side door |
| Batteries Supported | 0 |
| Cabinet Type | Integrated cabinet |
| Color | Green | Green (RAL 6009) | Light Gray (RAL 7035) | Others available at additional cost |
| Cooling | 175 mm fan (1) |
| Door Security | Swing handle with 22mm profile cylinder |
| Doors, quantity | 2 |
| Mounting | Plinth | Root |
| Rack Type | EIA 19 in |
| Rack Units | 4 |
Dimensions
| Height | 1041.4 mm | 41 in |
| Width | 1041.4 mm | 41 in |
| Depth | 355.6 mm | 14 in |
Electrical Specifications
| Input Power Supply | 16-20A |
| ac Distribution Type | 8-way plastic enclosure |
| dc Distribution Type | Power supply unit |
| Generator Connection | No connection |
| Power Phase | Single |
| Rectifier Power | 800 W |
| Rectifiers, quantity | 2 |
| Voltage | 230 Vac |
Material Specifications
| Finish | Powder coated |
| Material Type | Galvanized steel |
Environmental Specifications
| Qualification Standards | IEC 60529: 2001 | IEE Wiring Regulations BS 7671 | IP55 |
Packaging and Weights
| Included | -48V DC Power supply unit | Brackets | Cooling | Installation Kit | Power Distribution |
| Weight, net | 130.181 kg | 287 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Micro cell site enclosure |
| Ordering Note | For UK region only |
General Specifications
| Access | Front door | Side door |
| Batteries Supported | 0 |
| Cabinet Type | Integrated cabinet |
| Color | Green | Green (RAL 6009) | Light Gray (RAL 7035) | Others available at additional cost |
| Cooling | 175 mm fan (1) |
| Door Security | Swing handle with 22mm profile cylinder |
| Doors, quantity | 2 |
| Mounting | Plinth | Root |
| Rack Type | EIA 19 in |
| Rack Units | 4 |
Dimensions
| Height | 1041.4 mm | 41 in |
| Width | 1041.4 mm | 41 in |
| Depth | 355.6 mm | 14 in |
Electrical Specifications
| Input Power Supply | 16-20A |
| ac Distribution Type | 8-way plastic enclosure |
| dc Distribution Type | Power supply unit |
| Generator Connection | No connection |
| Power Phase | Single |
| Rectifier Power | 800 W |
| Rectifiers, quantity | 2 |
| Voltage | 230 Vac |
Material Specifications
| Finish | Powder coated |
| Material Type | Galvanized steel |
Environmental Specifications
| Qualification Standards | IEC 60529: 2001 | IEE Wiring Regulations BS 7671 | IP55 |
Packaging and Weights
| Included | -48V DC Power supply unit | Brackets | Cooling | Installation Kit | Power Distribution |
| Weight, net | 130.181 kg | 287 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
