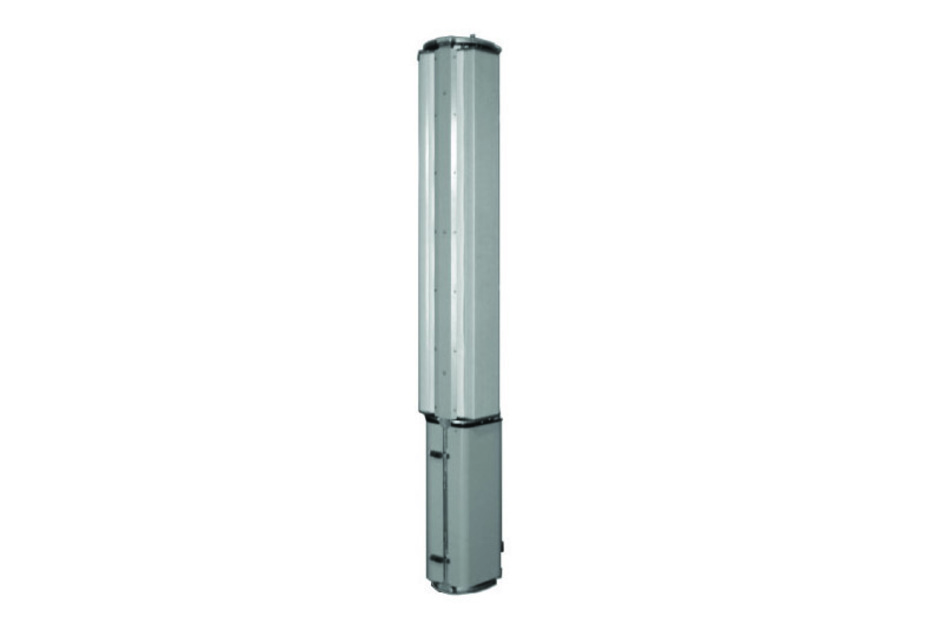

HN-10-SP
Head Frame - 1710 - 2170MHz Antennas with TMA Enclosure
Specifications
Specifications
Product Classification
| Product Type | Head frame |
General Specifications
| Application | Outdoor |
Dimensions
| Height | 2000 mm | 78.74 in |
| Diameter, at zero degrees panning | 345 mm | 13.583 in |
| Antenna Panning Capability | ±25° |
| Weight, net | 68 kg | 149.914 lb |
Electrical Specifications
| Lightning Protection | Chassis ground |
Mechanical Specifications
| Wind Loading @ Velocity, maximum | 600.0 N @ 160 km/h (134.9 lbf @ 160 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and Weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Head frame |
General Specifications
| Application | Outdoor |
Dimensions
| Height | 2000 mm | 78.74 in |
| Diameter, at zero degrees panning | 345 mm | 13.583 in |
| Antenna Panning Capability | ±25° |
| Weight, net | 68 kg | 149.914 lb |
Electrical Specifications
| Lightning Protection | Chassis ground |
Mechanical Specifications
| Wind Loading @ Velocity, maximum | 600.0 N @ 160 km/h (134.9 lbf @ 160 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and Weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
