760254041 | EPX-1U-CHD-ENC

Base Product: EPX-PANELS

  • Available in:
  • Asia
  • Australia/New Zealand
  • China

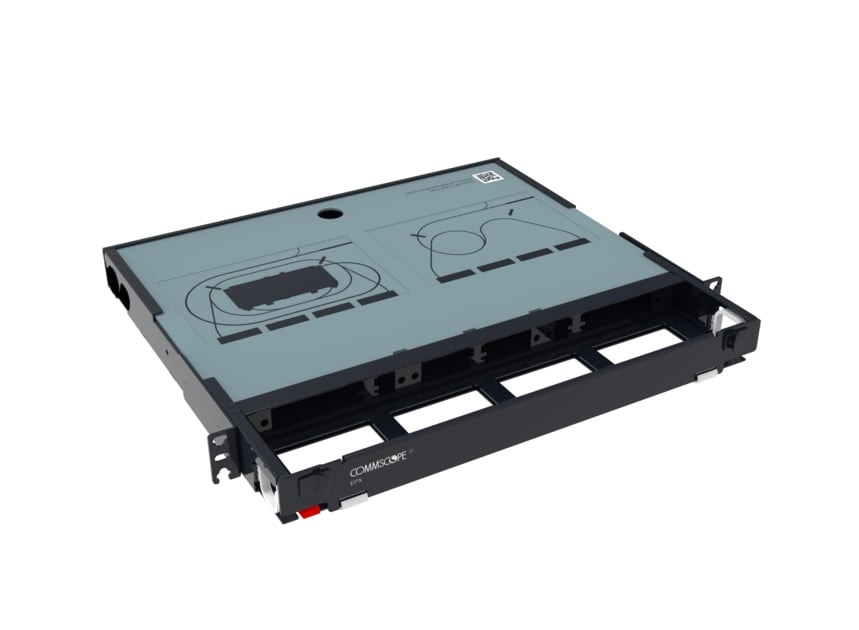

EPX 1U sliding panel, accepts (8) CHD style modules, adapter packs, or splice cassettes, providing up to 48 duplex LC ports

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | China
Portfolio CommScope®
Product Type Fiber patch panel | Fiber patch/splice panel
Product Series EPX

General Specifications

Application Accepts eight CHD modular cassettes | Accepts four G2 modular cassettes
Color Black
Intelligence Type Not iPatch® ready
Interface, front Unloaded
Module/Adapter Pack Slots, quantity 4
Rack Type EIA 19 in
Rack Units 1
Shelf Movement Sliding
Total Fibers, quantity 96
Total Ports, quantity 0

Dimensions

Height 44.45 mm | 1.750 in
Width 482.6 mm | 19.000 in
Depth 412.75 mm | 16.250 in

Environmental Specifications

Safety Standard CSA 22.2 | UL 1863

Packaging and Weights

Packaging quantity 1
Weight, net 3.529 kg | 7.78 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | China
Portfolio CommScope®
Product Type Fiber patch panel | Fiber patch/splice panel
Product Series EPX

General Specifications

Application Accepts eight CHD modular cassettes | Accepts four G2 modular cassettes
Color Black
Intelligence Type Not iPatch® ready
Interface, front Unloaded
Module/Adapter Pack Slots, quantity 4
Rack Type EIA 19 in
Rack Units 1
Shelf Movement Sliding
Total Fibers, quantity 96
Total Ports, quantity 0

Dimensions

Height 44.45 mm | 1.750 in
Width 482.6 mm | 19.000 in
Depth 412.75 mm | 16.250 in

Environmental Specifications

Safety Standard CSA 22.2 | UL 1863

Packaging and Weights

Packaging quantity 1
Weight, net 3.529 kg | 7.78 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
