2120148-4

Base Product: O-LA

Available in:
India

Fiber Optic Outside Plant Cable, 48-core, ECSS (Electro Chrome Coated Steel) Armored, Loose-tube, Gel-filled, 9/125 µm, OS2, Singlemode, Black cable jacket

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Designed for use in backbone cabling, campus site cabling, outdoor ducts or direct burial cabling applications
Designed with a gel filled loose tube construction to ensure protection against moisture ingress

Specifications

Product Classification

Regional Availability	India
Portfolio	CommScope®
Product Type	Fiber OSP cable
Product Series	O-LA

General Specifications

Armor Type	Corrugated steel
Cable Type	Loose tube
Subunit Type	Gel-filled
Filler, quantity	0
Jacket Color	Black
Jacket Marking	Meters
Strength Members	Central fiber reinforced polymer (FRP) rod
Fibers per Subunit, quantity	8
Total Fiber Count	48

Dimensions

Cable Length	2000 m \| 6561.68 ft
Diameter Over Jacket	15.5 mm \| 0.61 in

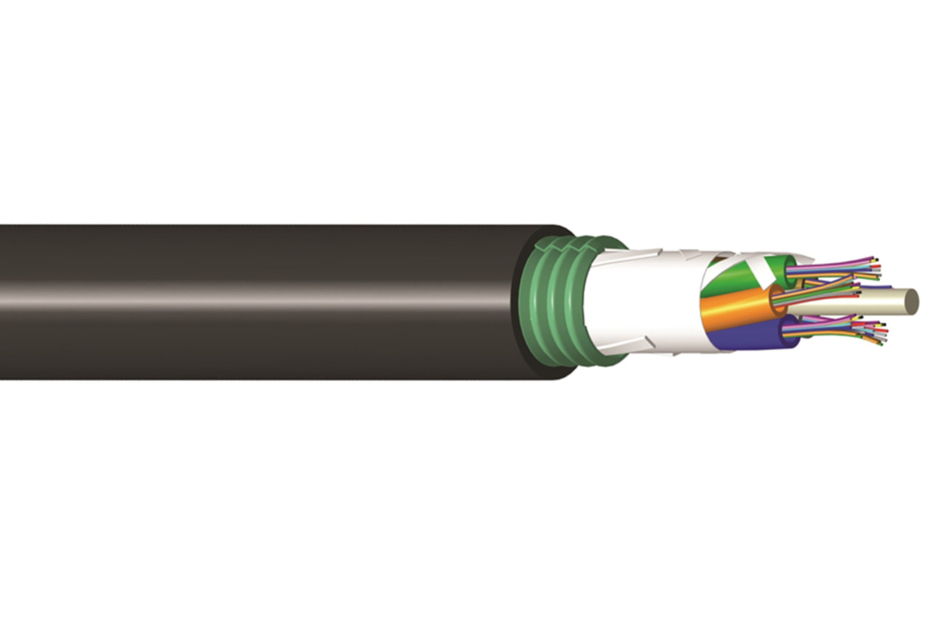

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material

High density polyethylene (HDPE)

Mechanical Specifications

Minimum Bend Radius, loaded	310 mm \| 12.205 in
Minimum Bend Radius, unloaded	248 mm \| 9.764 in
Tensile Load, short term, maximum	4000 N \| 899.236 lbf
Cable Crush Resistance, maximum	44 N/mm \| 251.246 lb/in
Flex	25 cycles

Optical Specifications

Fiber Type

OS2

Optical Specifications, Wavelength Specific

Attenuation, maximum	0.22 dB/km @ 1,550 nm \| 0.34 dB/km @ 1,310 nm
Standards Compliance	ANSI/TIA-568.E-3 \| TIA-492CAAB (OS2)

Environmental Specifications

Operating Temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Cable Qualification Standards	Telcordia GR-20-CORE

Packaging and Weights

Cable weight

215 kg/km | 144.473 lb/kft

Regulatory Compliance/Certifications

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
