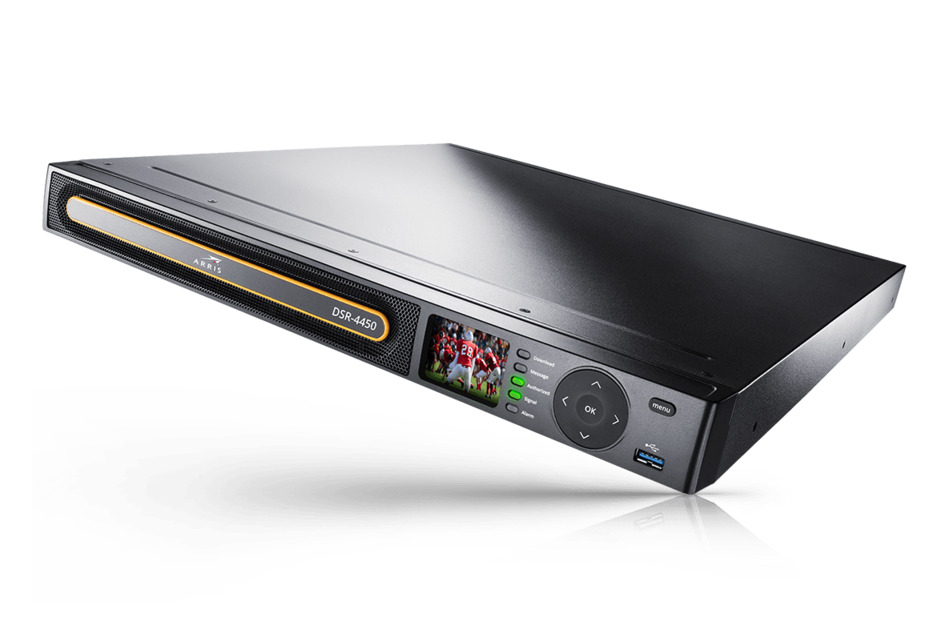

DSR-4450 | DSR-4450 Commercial Integrated Receiver/Decoder

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

HEVC, MPEG-4 and MPEG-2 commercial integrated receiver/decoder

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

The DSR-4450 Integrated Receiver / Decoder takes your network to the next level through the addition of HEVC decoding technology and DVB-S2x demodulation.

The DSR-4450 also provides legacy support for MPEG-4 and MPEG-2 video decoding and DVB-S2 8PSK demodulation.

Outputs include 2 Gigabit Ethernet ports and 2 ASI ports for transport stream output and 1 composite video output for analog distribution.

2 RF Inputs (L-Band) and ASI Input
Multi-format HEVC, MPEG-4, and MPEG-2 HD and SD processing
Advanced Modulation support with DCII QPSK, DVB-S2 8PSK, DVB-S2x and 8PSK Turbocode
DCII subtitle overlay on decoded output
Dual ASI and Gig-E transport outputs to distribute PID Aliased user preferred service

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Integrated receiver decoder (IRD)

General Specifications

Audio Impedance	600 ohm
Audio Output Frequency Response	±1.0 dB p-p maximum, 20 Hz to 20 kHz
Contact Closure Type	Form C \| SPDT
HD Resolution	1080i60 \| 1080p23.98 \| 720p60
Input Frequency	950–2150 MHz
Input Impedance	75 ohm
Input Type	‘F’ type connector
Rack Units	1
SD Resolution	528x480i \| 528x576i (25 fps) \| 544x480i \| 544x576i (25 fps) \| 704x480i \| 704x576i (25 fps) \| 720x480i \| 720x576i (25 fps)
Video Formats	HD \| HEVC \| MPEG-2 \| MPEG-4 \| SD

Dimensions

Height	41.91 mm \| 1.65 in
Width	480.06 mm \| 18.9 in
Depth	520.7 mm \| 20.5 in

Electrical Specifications

Isolation, port to port

40 dB

Environmental Specifications

Operating Temperature	0 °C to +50 °C (+32 °F to +122 °F)
Operating Humidity	95%, relative maximum

Packaging and Weights

Weight, gross

5.443 kg | 12 lb
