Warning Icon
This product was discontinued on: January 31, 2019

For other alternatives, please contact us for more information.

1 Replacement products available

760230102 | 360-imV-CNTRLR-AR

  • Available in:
  • Latin America

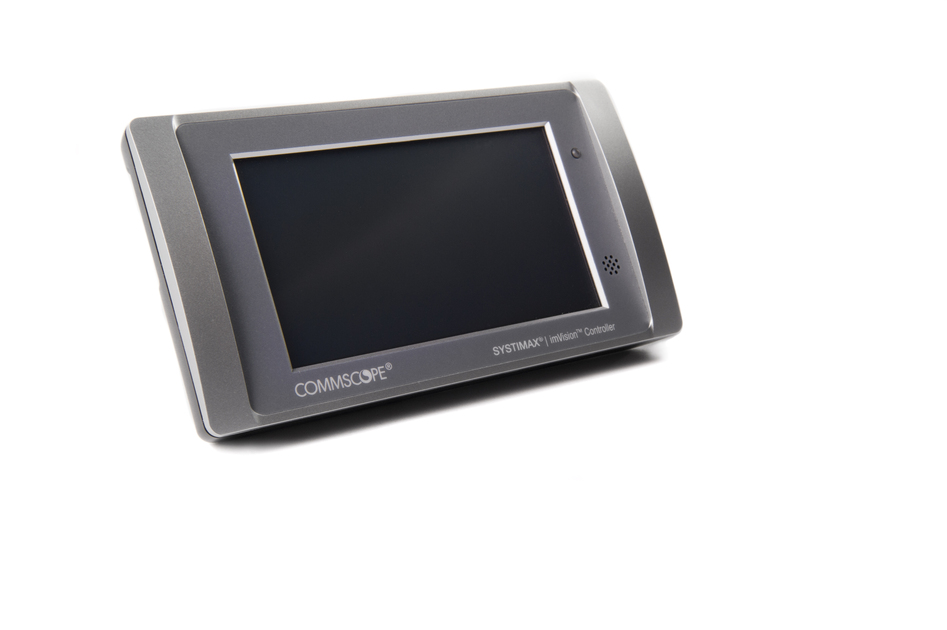

SYSTIMAX 360™ imVision® Controller
Specifications
Finish making your selections or clear them to view relevant specifications.
Specifications

Product Classification

Regional Availability Latin America
Portfolio SYSTIMAX®
Product Type Controller unit
Product Brand iPatch® | imVision®

General Specifications

Color Cool gray

Dimensions

Height 81.28 mm | 3.2 in
Width 19 mm | 0.748 in
Depth 211.33 mm | 8.32 in

Electrical Specifications

Input Voltage 100–240 Vac
Output Current at Voltage, continuous 1.25 A @ 12 Vdc
Power Frequency 50–60 Hz

Material Specifications

Material Type Acrylonitrile butadiene styrene (ABS) | Polycarbonate | Steel

Environmental Specifications

Operating Temperature 0 °C to +50 °C (+32 °F to +122 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity Up to 95%, non-condensing
Flammability Rating UL 94 V-0
Safety Standard C-tick | CE | GOST | KC | cUL

Packaging and Weights

Included 16 in panel bus jumper | 7 ft patch cord | Forty-four position bus panel | Power supply, 1.25A @ 12 Vdc output, 100-240 Vac 50-60 Hz input
Packaging quantity 1
Weight, net 1.288 kg | 2.84 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Regional Availability Latin America
Portfolio SYSTIMAX®
Product Type Controller unit
Product Brand iPatch® | imVision®

General Specifications

Color Cool gray

Dimensions

Height 81.28 mm | 3.2 in
Width 19 mm | 0.748 in
Depth 211.33 mm | 8.32 in

Electrical Specifications

Input Voltage 100–240 Vac
Output Current at Voltage, continuous 1.25 A @ 12 Vdc
Power Frequency 50–60 Hz

Material Specifications

Material Type Acrylonitrile butadiene styrene (ABS) | Polycarbonate | Steel

Environmental Specifications

Operating Temperature 0 °C to +50 °C (+32 °F to +122 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity Up to 95%, non-condensing
Flammability Rating UL 94 V-0
Safety Standard C-tick | CE | GOST | KC | cUL

Packaging and Weights

Included 16 in panel bus jumper | 7 ft patch cord | Forty-four position bus panel | Power supply, 1.25A @ 12 Vdc output, 100-240 Vac 50-60 Hz input
Packaging quantity 1
Weight, net 1.288 kg | 2.84 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
