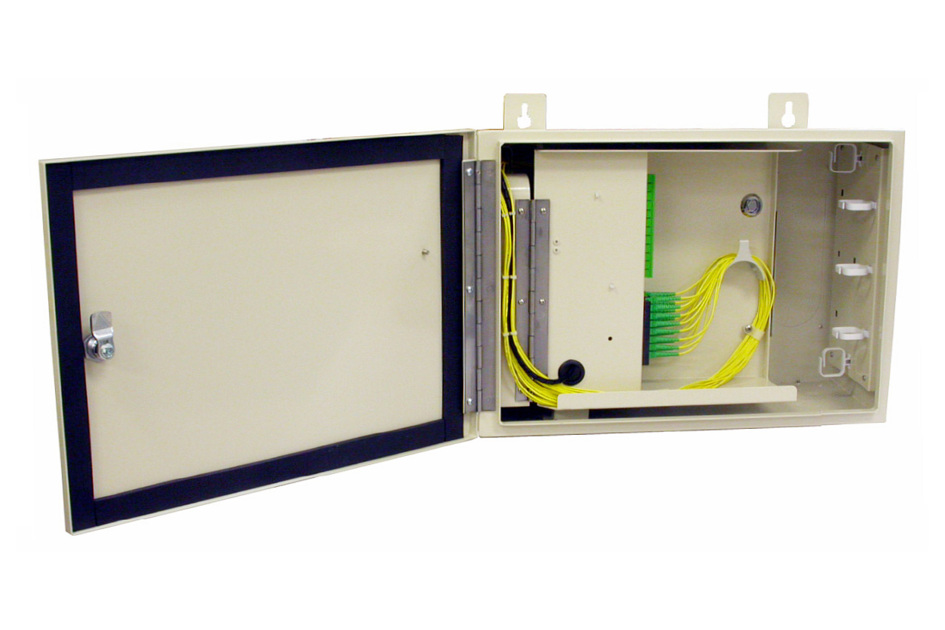

OFDT Outdoor Fiber Distribution Terminal, 24-fiber, SC/APC, 6 ports loaded, loose tube OSP cable, 200 ft
Features and Benefits
- OFDT is a compact and secure family of enclosures by connecting fiber cables at MDUs
- Features a unique “swing frame” type design that separates the splicing in the rear from the patch access in the front
- Accommodates a variety of OSP cable types via sealed grommet entry with standard grip clamps
- Robust steel construction protects fibers against damage and ensures network reliability
Specifications
Product Classification
| Regional Availability | North America |
| Product Type | Fiber distribution terminal |
| Product Series | OFDT |
General Specifications
| Functionality | Patching |
| Access | Front |
| Enclosure Color | Putty white |
| Front Door Type | Double hinged |
| Growth Configuration | Partially loaded |
| Interface | SC/APC |
| Lock Type | Padlock ready |
| Mounting | Wall |
| Port Capacity, maximum | 24 |
| Port, quantity | 6 |
Dimensions
| Height | 342.9 mm | 13.5 in |
| Width | 482.6 mm | 19 in |
| Depth | 203.2 mm | 8 in |
| Cable Length | 60.96 m | 200 ft |
Material Specifications
| Enclosure Material Type | Steel |
| Finish | Powder coated |
Optical Specifications
| Fiber Mode | Singlemode |
Environmental Specifications
| Environmental Space | Outdoor |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Regional Availability | North America |
| Product Type | Fiber distribution terminal |
| Product Series | OFDT |
General Specifications
| Functionality | Patching |
| Access | Front |
| Enclosure Color | Putty white |
| Front Door Type | Double hinged |
| Growth Configuration | Partially loaded |
| Interface | SC/APC |
| Lock Type | Padlock ready |
| Mounting | Wall |
| Port Capacity, maximum | 24 |
| Port, quantity | 6 |
Dimensions
| Height | 342.9 mm | 13.5 in |
| Width | 482.6 mm | 19 in |
| Depth | 203.2 mm | 8 in |
| Cable Length | 60.96 m | 200 ft |
Material Specifications
| Enclosure Material Type | Steel |
| Finish | Powder coated |
Optical Specifications
| Fiber Mode | Singlemode |
Environmental Specifications
| Environmental Space | Outdoor |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant/Exempted |
