NG4-MMDC20R000

Base Product: NG4-MODULES

  • Available in:
  • Latin America
  • North America

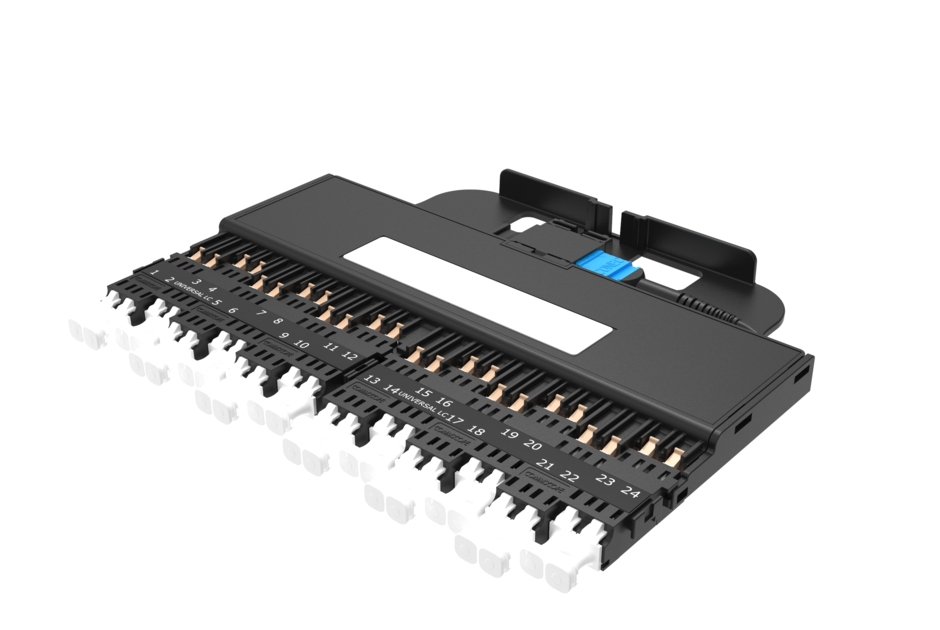

NG4access® MPO Module, multimode OM4, LC-MPO 1x24 fiber, Polarity A, right exit (for MPO module)

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Offers the same craft-friendly interface for LC and SC connectors as the cabled module
  • Allow installers to connect an MPO trunk cable to turn up services in rapid installation applications

Product Classification

Regional Availability Latin America | North America
Portfolio CommScope®
Product Type Fiber module
Product Brand NG4access®
Product Series NG4

General Specifications

Functionality Breakout
Application NG4 MPO module
Adapter Color Aqua
Adapters, quantity, front 12
Body Style Simplex
Color, front Black
Color, housing Black
Color, rear Black
Interface, front SC/UPC
Interface, rear MPO
Polarity Method A
Total Fibers, quantity 24
Total Ports, quantity, front 24

Dimensions

Height 13.21 mm | 0.52 in
Width 159.77 mm | 6.29 in
Depth 130.3 mm | 5.130 in

Outline Drawing

Click on image to enlarge.

Optical Specifications

Fiber Mode Multimode
Fiber Type OM4, bend insensitive

Environmental Specifications

Operating Temperature -5 °C to +40 °C (+23 °F to +104 °F)
Storage Temperature -5 °C to +50 °C (+23 °F to +122 °F)
Relative Humidity Up to 85%, non-condensing

Packaging and Weights

Packaging quantity 1
Packaging Type Bag | Carton

Product Classification

Regional Availability Latin America | North America
Portfolio CommScope®
Product Type Fiber module
Product Brand NG4access®
Product Series NG4

General Specifications

Functionality Breakout
Application NG4 MPO module
Adapter Color Aqua
Adapters, quantity, front 12
Body Style Simplex
Color, front Black
Color, housing Black
Color, rear Black
Interface, front SC/UPC
Interface, rear MPO
Polarity Method A
Total Fibers, quantity 24
Total Ports, quantity, front 24

Dimensions

Height 13.21 mm | 0.52 in
Width 159.77 mm | 6.29 in
Depth 130.3 mm | 5.130 in

Optical Specifications

Fiber Mode Multimode
Fiber Type OM4, bend insensitive

Environmental Specifications

Operating Temperature -5 °C to +40 °C (+23 °F to +104 °F)
Storage Temperature -5 °C to +50 °C (+23 °F to +122 °F)
Relative Humidity Up to 85%, non-condensing

Packaging and Weights

Packaging quantity 1
Packaging Type Bag | Carton
