EK5889-001 | CB-S1W1

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

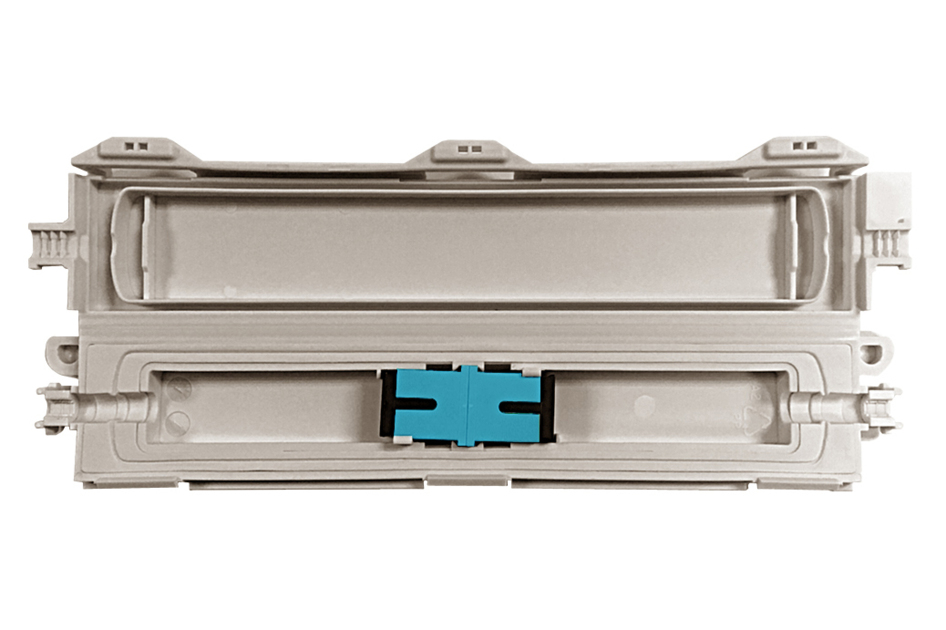

Fiber Optic Connector box, indoor, white, one SC/UPC adapter

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

designed for pre-terminated connectors or FIC in outdoor drop cable application
accommodates industry standard SC adaptors in outdoor aerial ,wall-mounted or pole installation
used for emergency repairs and maintenance, or urgent service turn-up requests
supports figure-8 and 3mm drop cable, with option of 4.5mm-5mm outdoor drop cables

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Fiber adapter enclosure
Product Series	CB

General Specifications

Adapters, quantity	1
Cable Sealing Type	Gel filled
Enclosure Color	White
Lock Type	Hinged with latches
Mounting	Wall
Port Color	Blue

Dimensions

Height	15 mm \| 0.591 in
Width	169 mm \| 6.654 in
Depth	33 mm \| 1.299 in

Dimension Drawing

Click on image to enlarge.

Material Specifications

Material Type

Polypropylene plastic

Optical Specifications

Fiber Mode

Singlemode

Environmental Specifications

Operating Temperature	-40 ºC to +65 ºC (-40 ºF to +149 ºF)
Environmental Space	Outdoor
Qualification Standards	IEC 60529, IP54

Packaging and Weights

Packaging quantity	1
Packaging Type	Box \| Carton

Regulatory Compliance/Certifications

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
