760248928 | FP-NLBL-1P-003

Base Product: FP-NLBL-1P

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

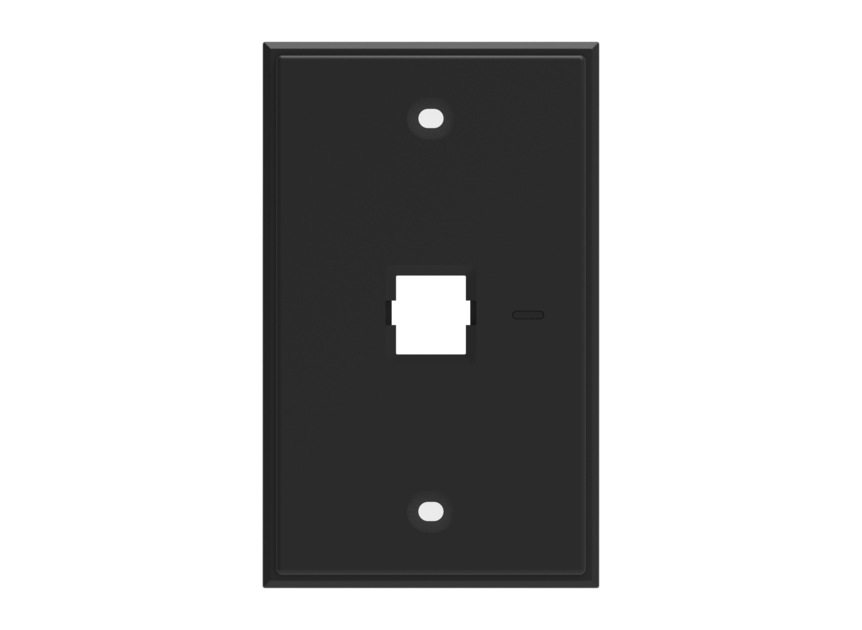

Faceplate Kit, no label, 1-gang, 1 port, electric black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
Features and Benefits
  • Engineered for residential and commercial applications from classrooms and hospitals to offices and homes
  • Labeling models feature mold-over icon and leveling and convex labels for maximum visibility in low density areas

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Faceplate kit
Product Series FP-NLBL
Warranty For more information, please consult our Product Warranty guidelines

General Specifications

Application Used with KJ Series outlets with adapter | Used with M Series outlets | Used with SL Series outlets
Color Electrical black
Gangs, quantity 1
Mounting Flush
Outlet Orientation Flat
Port Marking Type Icon | Non-Label
Total Ports, quantity 1

Dimensions

Height 115.824 mm | 4.56 in
Width 71.374 mm | 2.81 in
Depth 10.668 mm | 0.42 in

Material Specifications

Material Type High-impact, flame retardant, thermoplastic, UL listed material

Environmental Specifications

Environmental Space Indoor
Flammability Rating UL 94 V-0
Safety Standard cUL US 1863

Packaging and Weights

Included Mounting screw (2)
Packaging quantity 1
Packaging Type Bag
Weight, net 0.036 kg | 0.08 lb

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Faceplate kit
Product Series FP-NLBL
Warranty For more information, please consult our Product Warranty guidelines

General Specifications

Application Used with KJ Series outlets with adapter | Used with M Series outlets | Used with SL Series outlets
Color Electrical black
Gangs, quantity 1
Mounting Flush
Outlet Orientation Flat
Port Marking Type Icon | Non-Label
Total Ports, quantity 1

Dimensions

Height 115.824 mm | 4.56 in
Width 71.374 mm | 2.81 in
Depth 10.668 mm | 0.42 in

Material Specifications

Material Type High-impact, flame retardant, thermoplastic, UL listed material

Environmental Specifications

Environmental Space Indoor
Flammability Rating UL 94 V-0
Safety Standard cUL US 1863

Packaging and Weights

Included Mounting screw (2)
Packaging quantity 1
Packaging Type Bag
Weight, net 0.036 kg | 0.08 lb

Engineering Drawing

760248928 Drawing - PDF

Installation Instruction

860662728 - Installation Sheet for Universal Port

Product Compliance Documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product Specification

760248928 Product specifications

Warranty

CommScope Limited Product Warranty

Engineering Drawing

760248928 Drawing - PDF

Installation Instruction

860662728 - Installation Sheet for Universal Port

Product Compliance Documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product Specification

760248928 Product specifications

Warranty

CommScope Limited Product Warranty
