108265430 | M108FR3-003

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

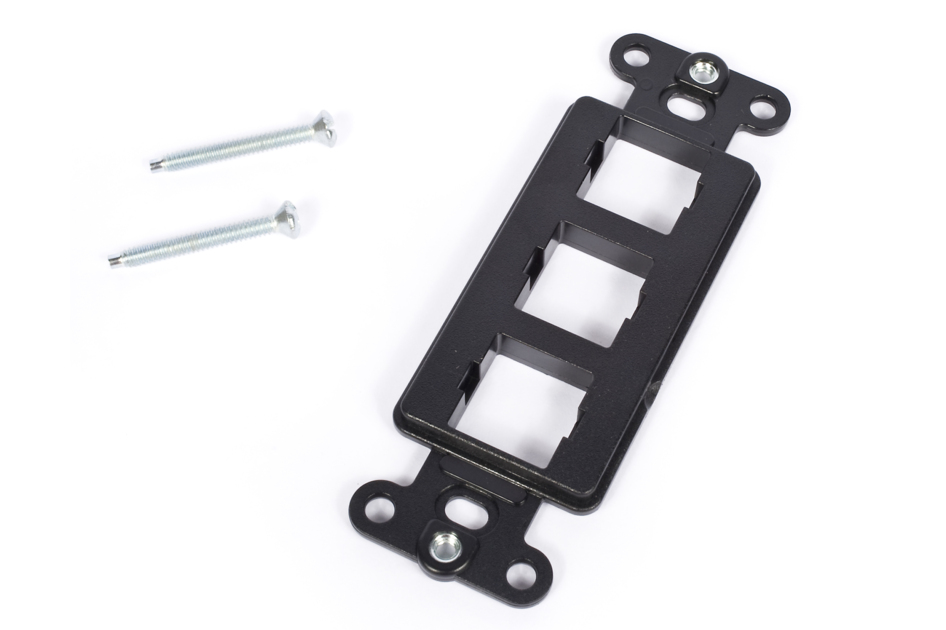

M108 Flush Mounted Modular Mounting Frame, three port black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Mounting kit

General Specifications

Application Used with M Series modular information outlet
Color Black
Mounting Flush
Total Ports, quantity 3

Dimensions

Height 99.82 mm | 3.93 in
Width 35.56 mm | 1.4 in
Depth 7.37 mm | 0.29 in

Material Specifications

Material Type High-impact, flame retardant, thermoplastic

Environmental Specifications

Flammability Rating UL 94 V-0
Safety Standard UL | cUL

Packaging and Weights

Packaging quantity 1
Weight, net 0.018 kg | 0.04 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
