760005447 | M81-RCA-110-270-B

  • Available in:
  • EMEA
  • North America
  • Latin America
  • Australia/New Zealand
  • Asia

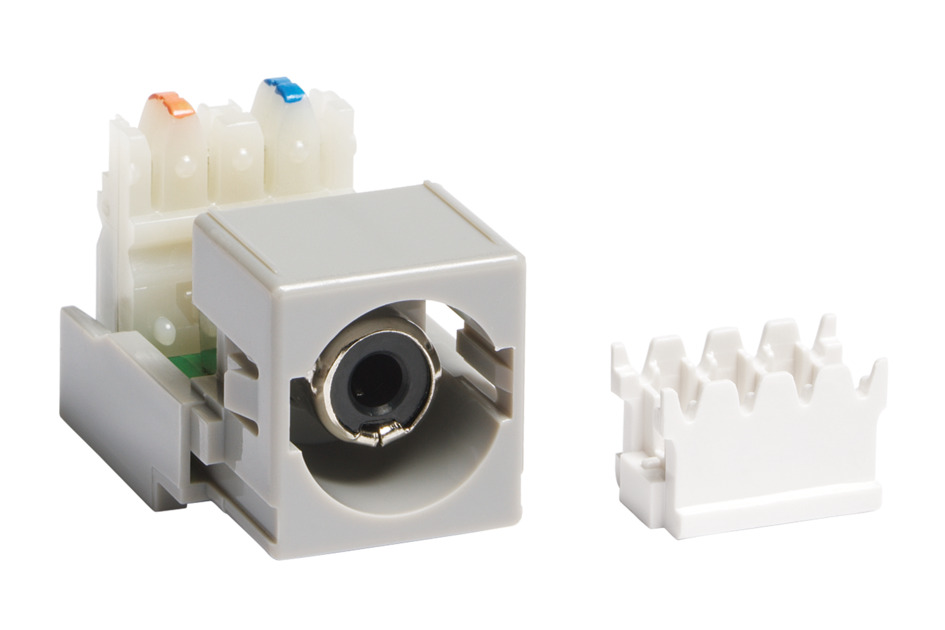

M81 RCA to 110 Punchdown Module Audio and Video Adapter, gray housing black connector
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Regional Availability EMEA | North America | Latin America | Australia/New Zealand | Asia
Portfolio CommScope®
Product Type Multimedia outlet

General Specifications

Color Gray
Color, RCA Black
Mounting Snap-in
UTP 110 Terminal Block 110 ohm

Electrical Specifications

Attenuation dc at Frequency, maximum 2 dB @ 5.5 MHz
Crosstalk @ Gain at Frequency -60 dB @ 5.5 MHz
Impedance 75 ohm
Insulation Resistance, minimum 50 mOhm

Material Specifications

Material Type High-impact, flame retardant, thermoplastic

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity 5%–95%, non-condensing
Flammability Rating UL 94 V-0

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
