Warning Icon
This product was discontinued on: December 30, 2019

For other alternatives, please contact us for more information.

1 Replacement products available

1-737860-2 | AS-IV-10-H-IY/GN-D-TR/TR-10

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

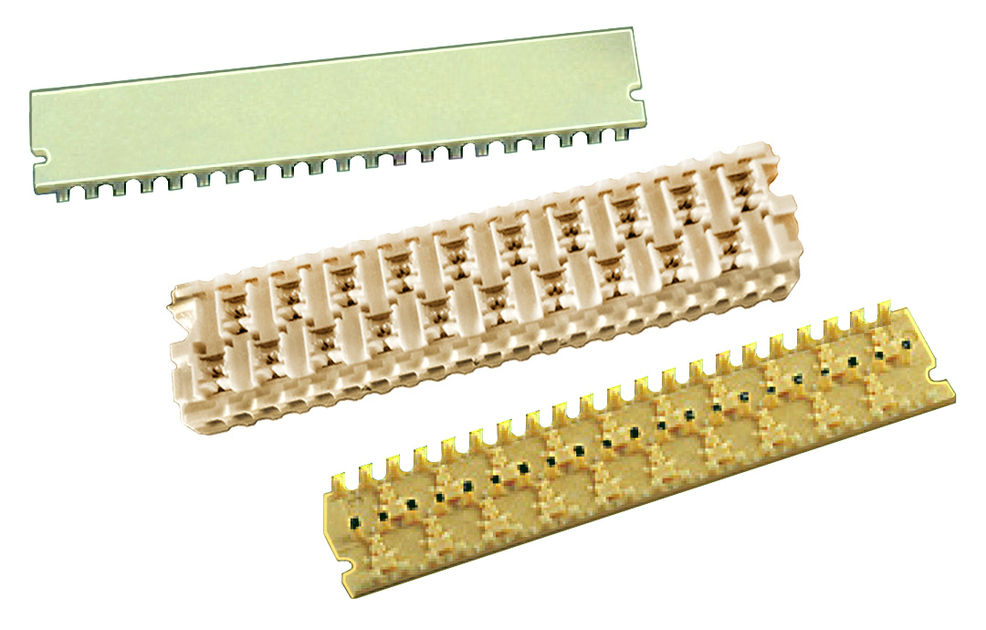

AMP STACK™ IV Connector Half-Tap Kit, dry, 10-pair

Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Connector kit
Product Brand AMP STACK™
Product Series AMP STACK
Ordering Note Minimum order quantity, 120 parts

General Specifications

Color Green ivory | Transparent
Connector Sealant Dry
Connector Splicing Type Half-tap
Pairs, quantity 10

Dimensions

Compatible Insulated Conductor Diameter, maximum 1.96 mm | 0.077 in
Compatible Conductor Gauge, solid 26–19 AWG

Material Specifications

Contact Base Material Phosphor Bronze
Contact Plating Material Tin
Material Type Glass filled polycarbonate

Environmental Specifications

Environmental Space Outdoor

Packaging and Weights

Included Base with covers
Packaging quantity 12
Packaging Type Bag | Box

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Connector kit
Product Brand AMP STACK™
Product Series AMP STACK
Ordering Note Minimum order quantity, 120 parts

General Specifications

Color Green ivory | Transparent
Connector Sealant Dry
Connector Splicing Type Half-tap
Pairs, quantity 10

Dimensions

Compatible Insulated Conductor Diameter, maximum 1.96 mm | 0.077 in
Compatible Conductor Gauge, solid 26–19 AWG

Material Specifications

Contact Base Material Phosphor Bronze
Contact Plating Material Tin
Material Type Glass filled polycarbonate

Environmental Specifications

Environmental Space Outdoor

Packaging and Weights

Included Base with covers
Packaging quantity 12
Packaging Type Bag | Box

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
