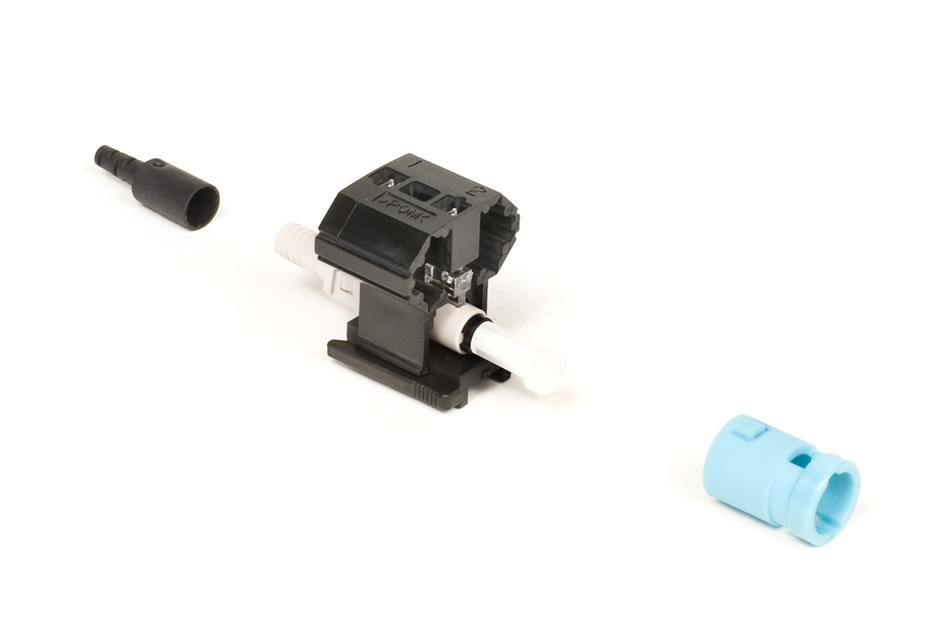

760253591 | MFC-STF-UNV-5X

Qwik II Connector™, ST, OM3/4/5, Aqua, 0.25/0.9/2.0/3.0 mm, single pack

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber connector
Product Brand	LazrSPEED® \| Qwik
Product Series	Qwik II

Body Style	BTW
Color	Aqua
Color, boot	Black
Ferrule Geometry	Factory polished
Interface	ST/UPC
Interface Feature	Field Installable \| Mechanical splice

Length	50.2 mm \| 1.976 in
Compatible Cable Diameter, maximum	0.9 mm \| 0.035 in
Compatible Cable Diameter, minimum	0.25 mm \| 0.01 in

Ferrule Material

Zirconia

Cable Retention Strength, maximum

1.00 lb @ 0 °

Fiber Mode	Multimode
Fiber Type	OM3 \| OM4 \| OM5, LazrSPEED® wideband
Insertion Loss Change, mating	0.3 dB
Optical Components Standard	ANSI/TIA-568. 3-D
Insertion Loss Change, temperature	0.3 dB
Insertion Loss, maximum	0.5 dB
Insertion Loss, typical	0.1 dB
Return Loss, minimum	20 dB

Operating Temperature

-40 °C to +75 °C (-40 °F to +167 °F)
