700216302 | R-002-ZC-6F-F16SL

Base Product: R-ZC

Available in:
Asia
Australia/New Zealand
Latin America
Middle East/Africa
North America

Fiber indoor cable, OptiSPEED® 1.6 mm Riser Zipcord, Multimode OM1, Feet jacket marking, Slate jacket color

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America
Portfolio	CommScope®
Product Type	Fiber indoor cable
Product Series	R-ZC

General Specifications

Cable Type	Cordage
Construction Type	Non-armored
Subunit Type	Gel-free
Jacket Color	Slate
Jacket Marking	Feet
Total Fiber Count	2

Dimensions

Height Over Jacket	1.7 mm \| 0.067 in
Width Over Jacket	3.5 mm \| 0.138 in

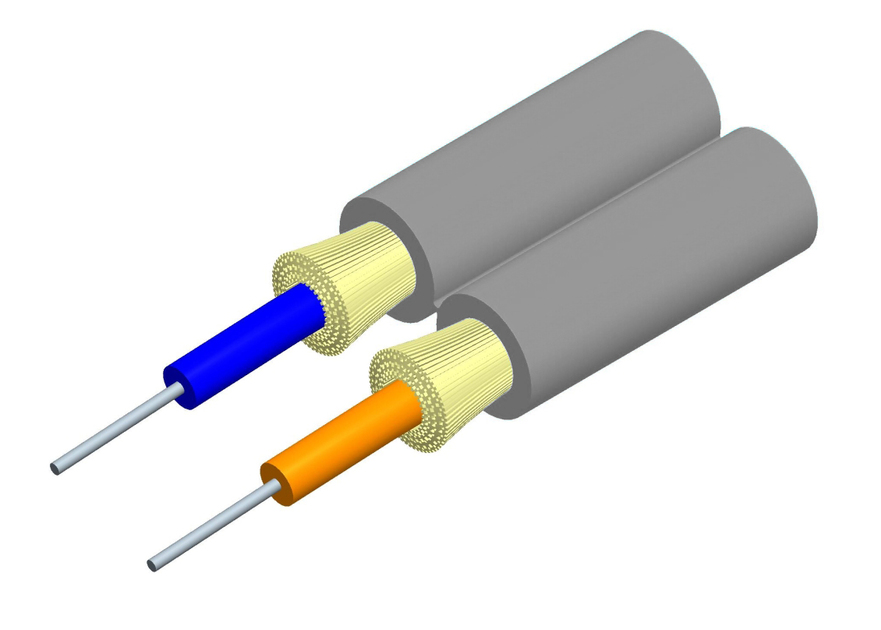

Representative Image

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded	38 mm \| 1.496 in
Minimum Bend Radius, unloaded	15 mm \| 0.591 in
Tensile Load, long term, maximum	53 N \| 11.915 lbf
Tensile Load, short term, maximum	178 N \| 40.016 lbf
Compression	10 N/mm \| 57.101 lb/in
Compression Test Method	FOTP-41 \| IEC 60794-1 E3
Flex	300 cycles
Flex Test Method	FOTP-104 \| IEC 60794-1 E6
Impact	0.74 N-m \| 6.55 in lb
Impact Test Method	FOTP-25 \| IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain Test Method	FOTP-33 \| IEC 60794-1 E1
Twist	10 cycles
Twist Test Method	FOTP-85 \| IEC 60794-1 E7
Vertical Rise, maximum	500 m \| 1640.42 ft

Optical Specifications

Fiber Type

OM1, OptiSPEED® | OM1, OptiSPEED®

Environmental Specifications

Installation temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Operating Temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards	ANSI/ICEA S-83-596 \| Telcordia GR-409
Environmental Space	Riser
Flame Test Listing	NEC OFNR (ETL) and c(ETL)
Flame Test Method	UL 1666

Environmental Test Specifications

Heat Age	-20 °C to +85 °C (-4 °F to +185 °F)
Heat Age Test Method	IEC 60794-1 F9
Low High Bend	-20 °C to +70 °C (-4 °F to +158 °F)
Low High Bend Test Method	FOTP-37 \| IEC 60794-1 E11
Temperature Cycle	-20 °C to +70 °C (-4 °F to +158 °F)
Temperature Cycle Test Method	FOTP-3 \| IEC 60794-1 F1

Packaging and Weights

Cable weight

5.8 kg/km | 3.897 lb/kft

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
