Z-DA

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

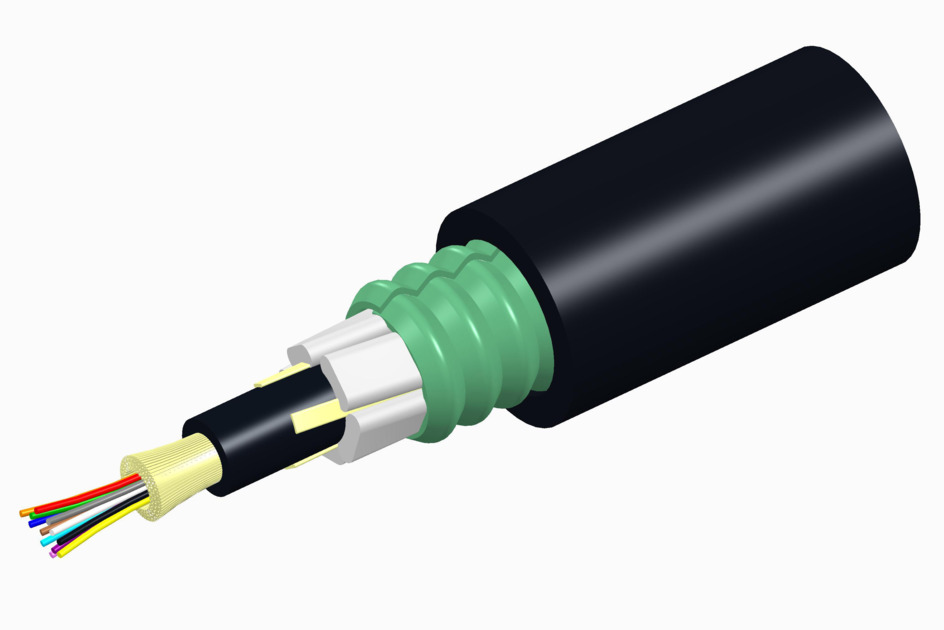

Fiber Optic Cable, Drop, Indoor/Outdoor Zero Halogen, Dual listed, Armored

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of Z-DA by selecting options

	Product	Regional Availability	Portfolio	Product Series	Product Type	Environmental Space	Construction Type	Jacket Color	Total Fiber Count	Jacket Material	Fiber Type	Cable Type	Jacket Marking	Subunit Type
	760217760 \| Z-012-DA-8G-F12BK/30D Fiber outdoor drop cable, Low Smoke Zero Halogen Single Jacket Single Armor Arid-Core, Singlemode G.657.A2/B2, Gel-free, Feet jacket marking, Black jacket color Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Z-DA	Fiber drop cable	Aerial \| lashed \| Buried \| Low Smoke Zero Halogen (LSZH) \| Riser	Armored	Black	12	Low Smoke Zero Halogen (LSZH)	G.657.A2/B2 \| G.657.A2/B2	Riser rated low smoke	Feet	Gel-free

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber drop cable
Product Series	Z-DA

General Specifications

Armor Type	Corrugated steel
Cable Type	Riser rated low smoke
Construction Type	Armored
Subunit Type	Gel-free
Jacket Color	Black

Environmental Specifications

Installation temperature	-30 °C to +60 °C (-22 °F to +140 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Cable Qualification Standards	ANSI/ICEA S-110-717
Environmental Space	Aerial, lashed \| Buried \| Low Smoke Zero Halogen (LSZH) \| Riser
Flame Test Listing	NEC OFCR (ETL) and c(ETL)
Flame Test Method	UL 1666
Jacket UV Resistance	UV stabilized
Water Penetration	24 h
Water Penentration Test Method	FOTP-82 \| IEC 60794-1 F5
