4110103/24 | 2312K CMRL 1/2" PLEN TRUNK 2400

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

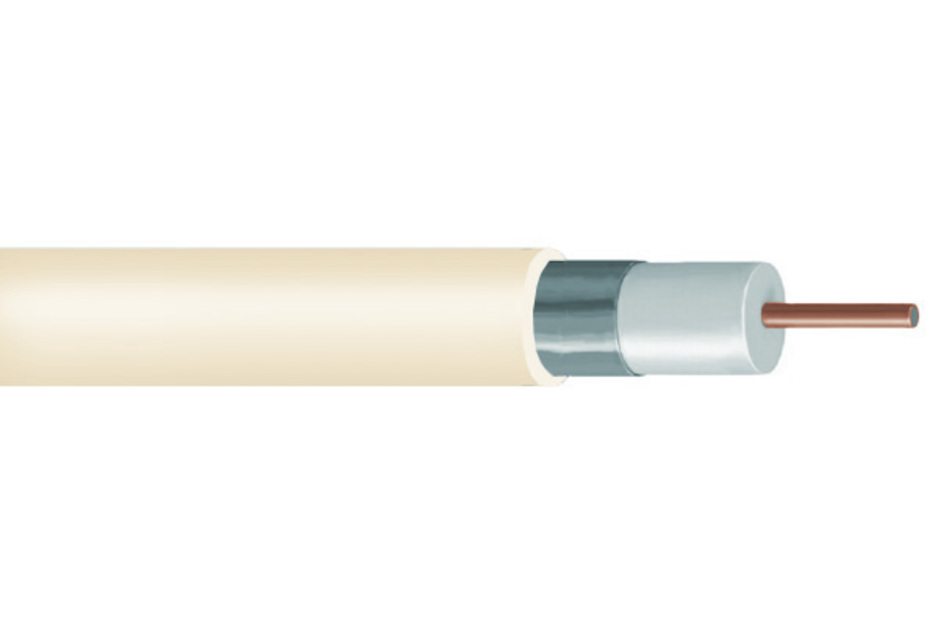

PIII® 500 JCAP 1/2” Plenum Trunk and Distribution Coaxial Cable, cream jacket, 2400 ft (732 m) reel

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Coaxial hardline cable
Product Brand PIII®

General Specifications

Product Number 2312K
Cable Type Trunk
Center Conductor Type Solid
Construction Type Swaged
Jacket Color Cream

Dimensions

Cable Length 731.52 m | 2400 ft
Diameter Over Center Conductor, specific 0.1090 in per 1 strand
Diameter Over Dielectric 11.481 mm | 0.452 in
Diameter Over Jacket, nominal 13.31 mm | 0.524 in
Diameter Over Shield (Braid) 12.7 mm | 0.5 in
Jacket Thickness 0.305 mm | 0.012 in

Electrical Specifications

Capacitance 52.493 pF/m | 16 pF/ft
Characteristic Impedance 75 ohm
Characteristic Impedance Tolerance ±2 ohm
Conductor dc Resistance 4.659 ohms/km | 1.42 ohms/kft
Dielectric Strength, conductor to shield 6500 Vdc
Jacket Spark Test Voltage 1000 Vac
Nominal Velocity of Propagation (NVP) 84 %
Structural Return Loss 20 dB @ 450–1218 MHz | 24 dB @ 5–450 MHz
Structural Return Loss Test Method 100% Swept Tested

Attenuation

Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft)
5.0 MHz 0.560 0.170
10.0 MHz 0.750 0.230
50.0 MHz 1.840 0.560
100.0 MHz 2.720 0.830
200.0 MHz 4.100 1.250
400.0 MHz 6.460 1.970
700.0 MHz 9.580 2.920
900.0 MHz 11.380 3.470
1000.0 MHz 12.400 3.780
1450.0 MHz 16.070 4.900
1800.0 MHz 18.760 5.720
2200.0 MHz 21.710 6.620
3000.0 MHz 27.320 8.330

Material Specifications

Center Conductor Material Copper-clad aluminum wire
Dielectric Material Foam FEP
Jacket Material PVDF
Shield (Tape) Material Swaged aluminum tube

Mechanical Specifications

Minimum Bend Radius, loaded, times 20 times
Minimum Bend Radius, unloaded, times 16 times
Pulling Tension, maximum 136.078 kg | 300 lb

Environmental Specifications

Operating Temperature -40 °C to +125 °C (-40 °F to +257 °F)
Environmental Space Plenum
Temperature Rating, UL 125 °C | 257 °F
Flame Test Method CMP
Safety Standard ETL | cETL

Packaging and Weights

Cable weight 188.997 kg/km | 127 lb/kft
Packaging Type Reel

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Coaxial hardline cable
Product Brand PIII®

General Specifications

Product Number 2312K
Cable Type Trunk
Center Conductor Type Solid
Construction Type Swaged
Jacket Color Cream

Dimensions

Cable Length 731.52 m | 2400 ft
Diameter Over Center Conductor, specific 0.1090 in per 1 strand
Diameter Over Dielectric 11.481 mm | 0.452 in
Diameter Over Jacket, nominal 13.31 mm | 0.524 in
Diameter Over Shield (Braid) 12.7 mm | 0.5 in
Jacket Thickness 0.305 mm | 0.012 in

Electrical Specifications

Capacitance 52.493 pF/m | 16 pF/ft
Characteristic Impedance 75 ohm
Characteristic Impedance Tolerance ±2 ohm
Conductor dc Resistance 4.659 ohms/km | 1.42 ohms/kft
Dielectric Strength, conductor to shield 6500 Vdc
Jacket Spark Test Voltage 1000 Vac
Nominal Velocity of Propagation (NVP) 84 %
Structural Return Loss 20 dB @ 450–1218 MHz | 24 dB @ 5–450 MHz
Structural Return Loss Test Method 100% Swept Tested

Attenuation

Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft)
5.0 MHz 0.560 0.170
10.0 MHz 0.750 0.230
50.0 MHz 1.840 0.560
100.0 MHz 2.720 0.830
200.0 MHz 4.100 1.250
400.0 MHz 6.460 1.970
700.0 MHz 9.580 2.920
900.0 MHz 11.380 3.470
1000.0 MHz 12.400 3.780
1450.0 MHz 16.070 4.900
1800.0 MHz 18.760 5.720
2200.0 MHz 21.710 6.620
3000.0 MHz 27.320 8.330

Material Specifications

Center Conductor Material Copper-clad aluminum wire
Dielectric Material Foam FEP
Jacket Material PVDF
Shield (Tape) Material Swaged aluminum tube

Mechanical Specifications

Minimum Bend Radius, loaded, times 20 times
Minimum Bend Radius, unloaded, times 16 times
Pulling Tension, maximum 136.078 kg | 300 lb

Environmental Specifications

Operating Temperature -40 °C to +125 °C (-40 °F to +257 °F)
Environmental Space Plenum
Temperature Rating, UL 125 °C | 257 °F
Flame Test Method CMP
Safety Standard ETL | cETL

Packaging and Weights

Cable weight 188.997 kg/km | 127 lb/kft
Packaging Type Reel

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
