FGS-MHRT-M/H
Base Product: FGS-MHRT
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

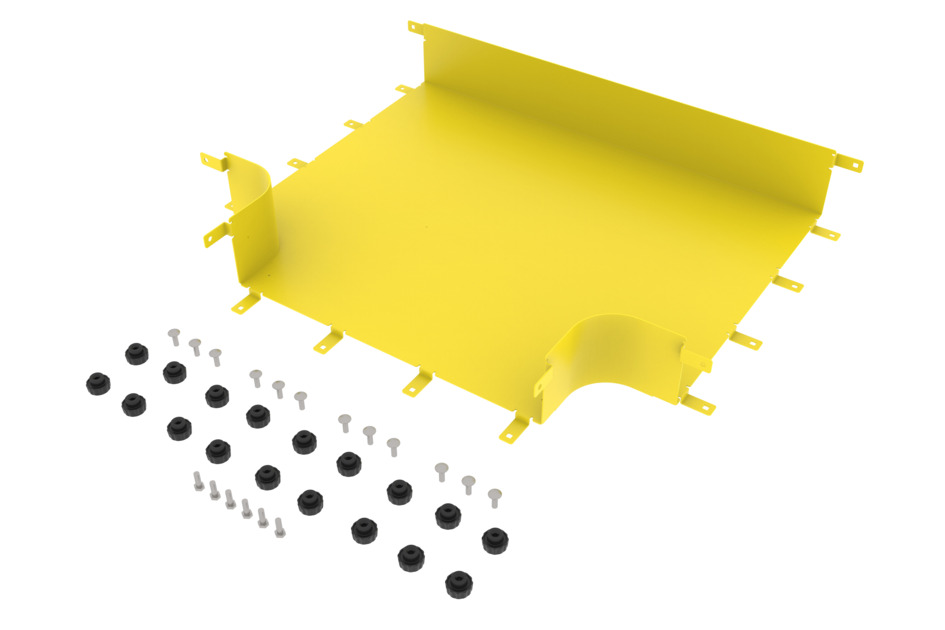

FiberGuide® Horizontal T, 4x18in, 4x24in Exit, Yellow
FiberGuide® Design Pro
A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Tee |
| Product Brand | FiberGuide® |
| Product Series | FGS |
General Specifications
| Product Feature | Transition |
| Color | Yellow |
| Orientation | Horizontal |
| Section Type | Tee section |
Dimensions
| Height | 114 mm | 4.488 in |
| Width | 476 mm | 18.740 in |
| Length | 905 mm | 35.630 in |
| System Dimensions | 102 mm x 457 mm (4 in x 18 in) | 102 mm x 610 mm (4 in x 24 in) |
Ordering Tree
| Click on image to enlarge. |
Material Specifications
| Material Type | Steel |
Environmental Specifications
| Safety Standard | CSA | UL |
Packaging and Weights
| Weight, net | 2.95 kg | 6.504 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Tee |
| Product Brand | FiberGuide® |
| Product Series | FGS |
General Specifications
| Product Feature | Transition |
| Color | Yellow |
| Orientation | Horizontal |
| Section Type | Tee section |
Dimensions
| Height | 114 mm | 4.488 in |
| Width | 476 mm | 18.740 in |
| Length | 905 mm | 35.630 in |
| System Dimensions | 102 mm x 457 mm (4 in x 18 in) | 102 mm x 610 mm (4 in x 24 in) |
Material Specifications
| Material Type | Steel |
Environmental Specifications
| Safety Standard | CSA | UL |
Packaging and Weights
| Weight, net | 2.95 kg | 6.504 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
