FGS-HTBK-S-18-5

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

FiberGuide® 18in Horizontal Sliding Tool-less Bracket Kit for 4x12 and 4x18in Systems

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

FiberGuide® Design Pro

A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access

Build America Buy America (BABA)*

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Broadband for Everyone Program

Features and Benefits

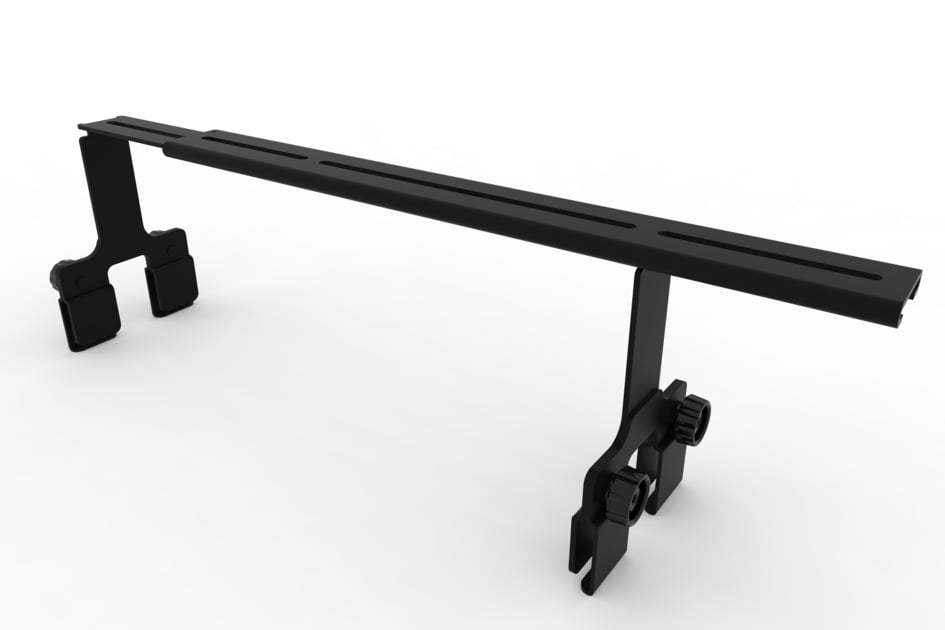

This 18in sliding bracket attaches to 18in ladder rack using our tool-less Quick Knobs. Used to mount and support 4x12 and 4x18in FiberGuideÂ® above ladder racking. Bracket can slide to offset the FiberGuideÂ® from the ladder rack. Sliding attachment can be removed.

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Support mounting kit
Product Brand	FiberGuide®
Product Series	FGS

General Specifications

Color	Black
Note	Includes fastening hardware
Orientation	Horizontal
Section Type	Bracket
Bracket Type	Center Support
Bracket Installation Type	N/A
Attachment Type	Ladder rack

Dimensions

Height	174.9298 mm \| 6.887 in
Width	114.3 mm \| 4.500 in
Length	460.0956 mm \| 18.114 in
Thread Size	N/A
System Dimensions	102 mm x 305 mm (4 in x 12 in) \| 102 mm x 457 mm (4 in x 18 in)

Packaging and Weights

Packaging quantity	1
Weight, net	1.13398 kg \| 2.500 lb
