FGS-HNTS-F-12MM-A

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

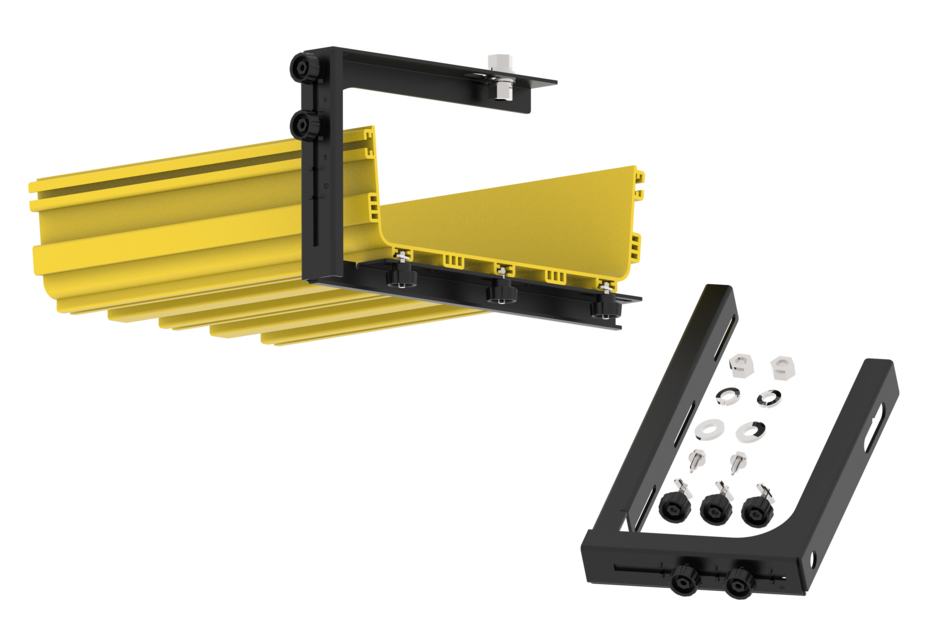

FiberGuide® Top Support Adjustable C-Bracket Kit, 12mm for 4x12in System

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
FiberGuide Design Pro - hero - portrait
FiberGuide® Design Pro

A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access

BABA-compliant
Build America Buy America (BABA)*

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Broadband for Everyone Program

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Support mounting kit
Product Brand FiberGuide®
Product Series FGS

General Specifications

Product Feature Adjustable Height
Color Black
Orientation Horizontal
Section Type Bracket
Bracket Type C-bracket
Bracket Installation Type N/A
Attachment Type Threaded rod

Dimensions

Height 304.8 mm | 12.000 in
Width 41.148 mm | 1.620 in
Length 384.048 mm | 15.120 in
Thread Size 12 mm
System Dimensions 102 mm x 305 mm (4 in x 12 in)

Ordering Tree

Click on image to enlarge.

Material Specifications

Material Type Carbon steel

Packaging and Weights

Included Hardware
Packaging quantity 1
Weight, net 2.517438 kg | 5.550 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Support mounting kit
Product Brand FiberGuide®
Product Series FGS

General Specifications

Product Feature Adjustable Height
Color Black
Orientation Horizontal
Section Type Bracket
Bracket Type C-bracket
Bracket Installation Type N/A
Attachment Type Threaded rod

Dimensions

Height 304.8 mm | 12.000 in
Width 41.148 mm | 1.620 in
Length 384.048 mm | 15.120 in
Thread Size 12 mm
System Dimensions 102 mm x 305 mm (4 in x 12 in)

Material Specifications

Material Type Carbon steel

Packaging and Weights

Included Hardware
Packaging quantity 1
Weight, net 2.517438 kg | 5.550 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
