This product was discontinued on: August 17, 2023

For other alternatives, please contact us for more information.

0 Replacement products available

NA-J300-2BS

Available in:
Asia
Australia/New Zealand
EMEA
Europe
Latin America
North America

Fiber Optic Node Service Cable Assembly, 6 SC/APC & 6 LC/UPC Connectors with 36in Breakout to Stub, 12F Armored Cable

Specifications

Finish making your selections or clear them to view relevant specifications.

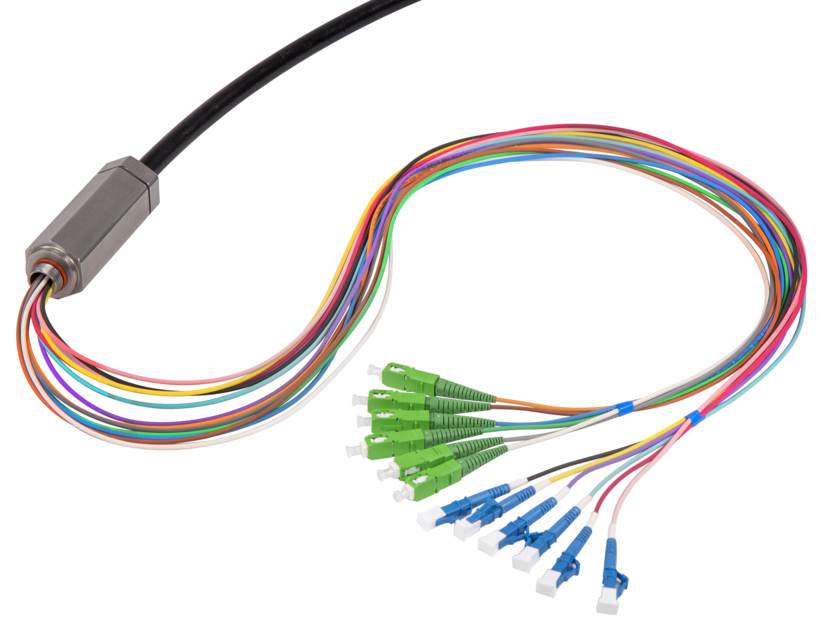

Representative Image - please check configurator for available options

Features and Benefits

Node Service Cable Assemblies are factory-terminated for use in node installations
Environmentally sealed and tested
Designed for fast installation between splicing in a closure transitioning to a node

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Europe \| Latin America \| North America
Product Type	Fiber node service cable assembly
Product Series	NA

General Specifications

Breakout Direction	Straight
Breakout Option	Feed‐through housing connector
Cable Color	Black
Cable Type	Armored - Round - Loose Tube
Color, LC/UPC boot	White
Color, LC/UPC connector	Blue
Construction Type	Breakout, armored
Interface, Connectors side A	SC/APC + LC/UPC
Interface, Connectors side B	Unterminated
Color, SC/APC boot	Green
Color, SC/APC connector	Green
Quantity, LC/UPC connectors	6
Quantity, SC/APC connectors	6
Total Fibers, quantity	12

Dimensions

Breakout Length, connector A	914.4 mm \| 36 in
Cable Assembly Length Range (m)	1 – 900
Cable Assembly Length Range (ft)	1 – 3000
Cable Outer Diameter	11.5 mm (0.45 in)

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material

Mechanical Specifications

Minimum Bend Radius, loaded	439 mm \| 17.283 in
Minimum Bend Radius, unloaded	115 mm \| 4.528 in
Tensile Load, long term, maximum	800 N \| 179.847 lbf
Tensile Load, short term, maximum	2700 N \| 606.984 lbf
Cable Crush Resistance, maximum	44 N/mm \| 251.246 lb/in

Optical Specifications

Fiber Mode	Singlemode
Fiber Type	G.652.D and G.657.A1
Insertion Loss, maximum, LC/UPC connectors	0.4 dB
Insertion Loss, maximum, SC/APC connectors	0.4 dB
Return Loss, minimum, LC/UPC connectors	55 dB
Return Loss, minimum, SC/APC connectors	65 dB

Environmental Specifications

Installation temperature	-30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Environmental Space	Outdoor, buried
Jacket UV Resistance	UV stabilized
Qualification Standards	Telcordia GR-326

Packaging and Weights

Cable weight	110 kg/km \| 73.917 lb/kft
Packaging quantity	1

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
