1859218-9 | CS44Z1 VLT C6A 4/23 F/UTP RL 305M

Base Product: CS44Z

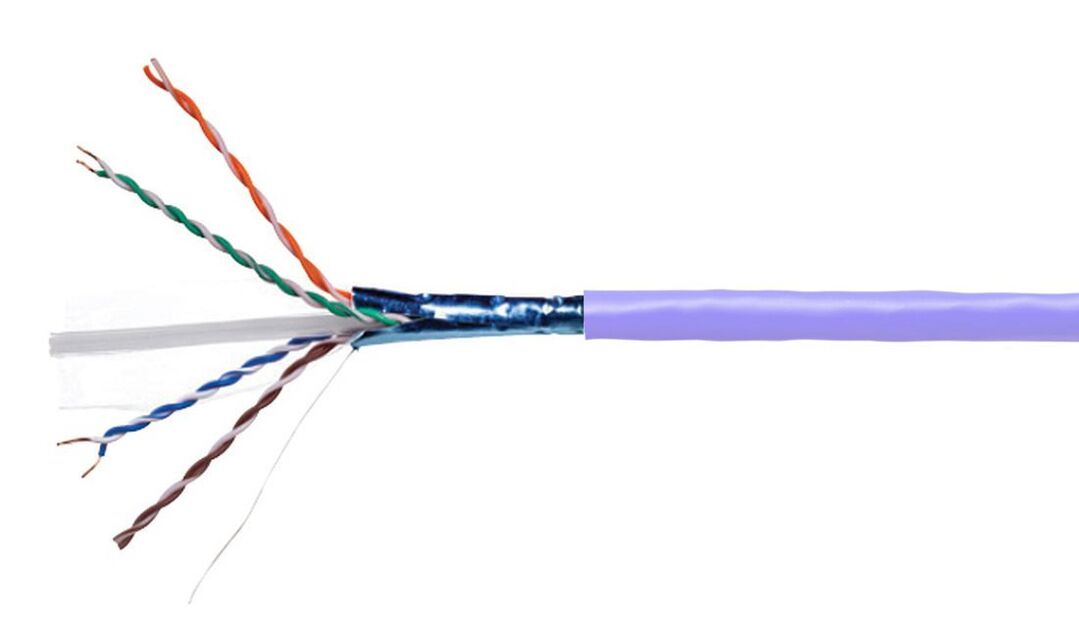

CS44Z1 Cable, category 6A, 4 pair, F/UTP, LSZH, 23 AWG, 305 m reel, violet

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| Latin America
Portfolio	NETCONNECT®
Product Type	Twisted pair cable
Product Series	640 Series

ANSI/TIA Category	6A
Cable Component Type	Horizontal
Cable Type	F/UTP (shielded)
Conductor Type, singles	Solid
Jacket Color	Violet
Pairs, quantity	4
Transmission Standards	ANSI/TIA-568.2-D \| CENELEC EN 50288-6-1 \| ISO/IEC 11801 Class EA

Cable Length	304.8 m \| 1000 ft
Diameter Over Insulated Conductor	1.140 mm \| 0.0449 in
Conductor Gauge, singles	23 AWG

Click on image to enlarge.

Characteristic Impedance	100 ohm
Characteristic Impedance Tolerance	±15 ohm
dc Resistance, maximum	7.8 ohms/100 m \| 2.377 ohms/100 ft
Delay Skew, maximum	45 ns
Mutual Capacitance at Frequency	5.6 nF/100 m @ 500 MHz
Nominal Velocity of Propagation (NVP)	69 %
Operating Voltage, maximum	80 V
Remote Powering	Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
Segregation Class	c

Conductor Material	Bare copper
Jacket Material	Low Smoke Zero Halogen (LSZH)

Operating Temperature	-20 °C to +75 °C (-4 °F to +167 °F)
Acid Gas Test Method	IEC 60754-2
EN50575 CPR Cable EuroClass Fire Performance	No Rating
Temperature Rating, UL	75 °C \| 167.000 °F
Flame Test Method	IEC 60332-1
Smoke Test Method	IEC 61034-2

Cable weight	60.107 kg/km \| 40.39 lb/kft
Packaging Type	Reel

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
