FPX-12MPRS07

Base Product: FPX-MODULES

  • Available in:
  • North America

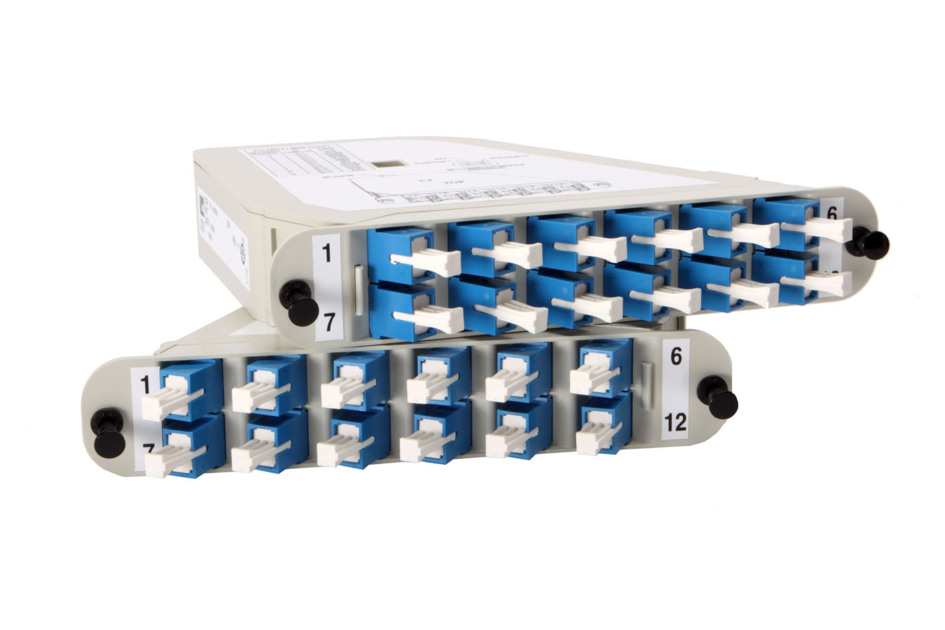

FPX Fiber Optic MPO Module, Singlemode OS2, 12 fiber UPC/UPC adapter, right, putty white

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • FPX modules offer the end-user the flexibility of a plug-and-play MPO architecture with a “grow as you go” approach to the network
  • Each module has a front bulkhead identical to the adapter pack with an internal cable assembly converting to an MPO male connector
  • All fiber connectivity is housed in an enclosed module with a rear MPO adapter allowing the user to utilize an MPO trunk to turn up service

Product Classification

Regional Availability North America
Portfolio CommScope®
Product Type Fiber module
Product Series FPX

General Specifications

Functionality Breakout
Application For use with FPX panels
Adapter Color Blue
Adapters, quantity, front 12
Adapters, quantity, rear 1
Body Style Right orientation | Simplex
Color, front Putty white
Color, housing Putty white
Color, rear Putty white
Interface, front SC/UPC
Interface, rear MPO
Interface Feature, rear Standard
Polarity Pairs, straight
Total Ports, quantity, front 12

Dimensions

Height 33.02 mm | 1.3 in
Width 176.53 mm | 6.95 in
Depth 127 mm | 5 in

Optical Specifications

Fiber Mode Singlemode
Fiber Type OS2

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature -40 °C to +85 °C (-40 °F to +185 °F)

Packaging and Weights

Packaging quantity 1
Packaging Type Bag | Carton

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
TL 9000:2016 (R6) Compliant to this quality management practice
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
