1510491-003 | BTTF2-10Q/U

Base Product: BTTF-Q

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

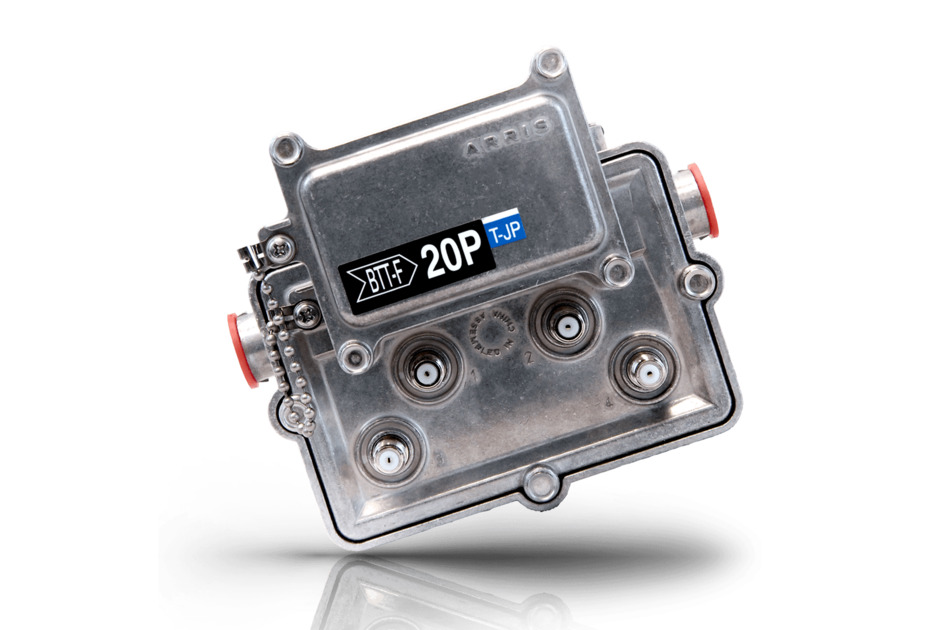

BTTF Faceplate only, for BTTF2-10Q RF Tap

Contact Us for a Quote
Specifications
Finish making your selections or clear them to view relevant specifications.
BABA-compliant
Build America Buy America (BABA)*

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Broadband for Everyone Program

Features and Benefits
  • Support expanded bandwidth up to 1218 MHz
  • Enable Cable Wi‐Fi® Access Point powering via the F‐port
  • Improve network performance with signal conditioning plug‐ins
  • High quality RF connection with auto‐seize F‐connectors
  • Maintain existing install base with compatibility back to “F” series FFT housings
  • High level of network resilience with 6 kV surge resistance
  • Maintain RF and AC continuity with integrated bypass capability
  • *Product complies with the Build America, Buy America Act (BABAA) requirements of the Infrastructure Investment and Jobs Act of 2021 (Pub. L. 117- 58, §§ 70901-70953), or is the subject of a waiver approved by the Secretary of Commerce or designee. Compliance requirements and waiver applicability vary based on government funding program. Check the laws and regulations for your specific program.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Faceplate for tap
Product Series BTTF
Government Requirements Build America Buy America (BABA) compliant*

General Specifications

Location of Manufacturing Waived per BABA waiver for BEAD Program
Number of Ports 2

Dimensions

Height 114.300 mm | 4.5 in
Depth 88.900 mm | 3.5 in
Length 139.700 mm | 5.5 in

Electrical Specifications

Bandwidth 5 – 1218 MHz MHz
Insertion Loss, tap, nominal 10 dB
Power Passing at 60/90V, maximum 12 A
Surge Protection, F port 6 kV Combination Wave

Environmental Specifications

Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Standards Compliance IEC 60950‐22 edition 2.0 2016‐01

Packaging and Weights

Weight 0.680 kg | 1.5 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant
