SSH-3642

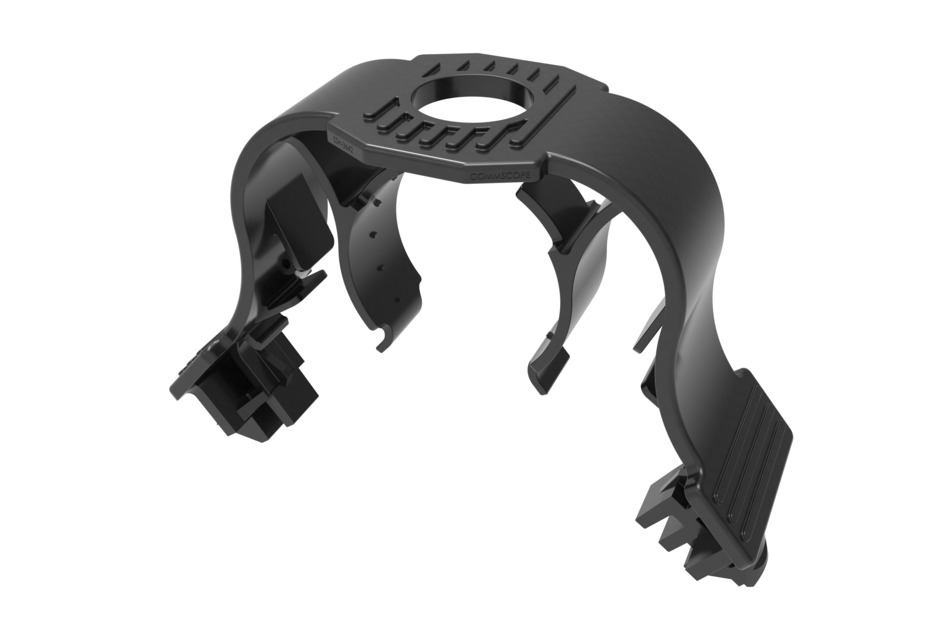

SnapTak PIM-Guard® Adjustable Hanger, Gen 2. Fits 36.0 mm to 42.0 mm Cables – PIM Free Polymer Construction. No Grommets Required.

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product Classification

Product Type	Hanger kit
Product Brand	SnapTak PIM-Guard®
Ordering Note	CommScope® standard product (Global)

Maximum Stack Height	2
Maximum Stack Height, Coaxial	2
Height	81.32 mm \| 3.202 in
Width	42 mm \| 1.654 in
Length	114.21 mm \| 4.496 in
Compatible Cable Diameter Range	36–42 mm
Compatible Diameter, maximum	42 mm \| 1.654 in
Compatible Diameter, minimum	36 mm \| 1.417 in
Nominal Size	NA

Return Loss Effect, maximum	0.1 dB
DTF Effect, maximum	0.1 dB

Material Type

Engineered plastic

Vibration Survival

≥4 hours at resonant frequency

Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability	Double cable weight
UV Resistance, minimum with no degradation	≥1000 hours exposure in accelerated UV life chamber
