WB-LB24-3
Waveguide Bridge Support Bracket, 24 in wide for 3-1/2 in OD legs
Specifications
Product Classification
| Product Type | Support bracket |
General Specifications
| Application | Waveguide bridge kit, 24 in |
| Cable Runs, quantity | 24 |
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 812.8 mm | 32 in |
| Length | 152.4 mm | 6 in |

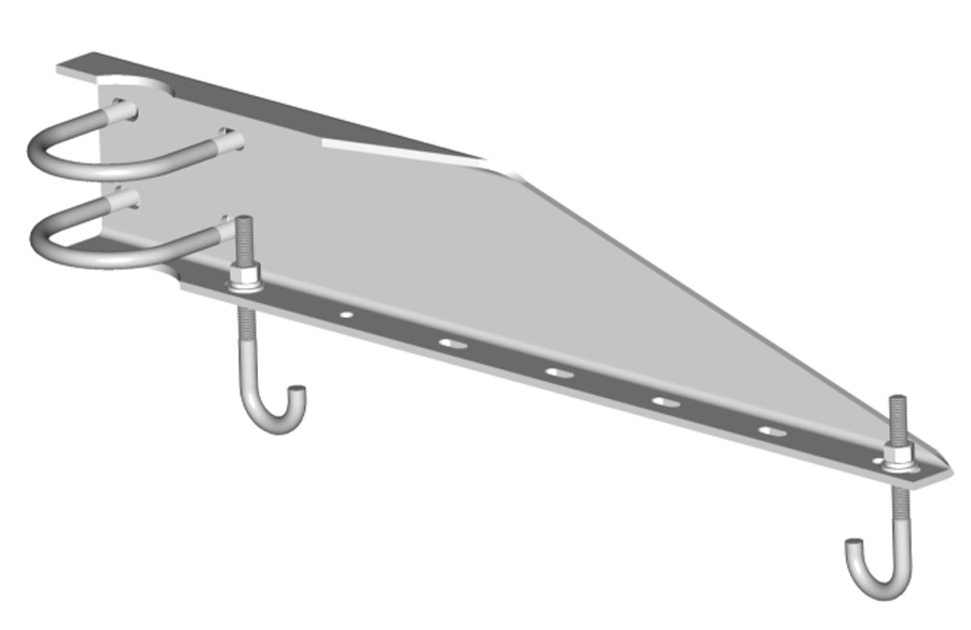

Outline Drawing
| Click on image to enlarge. |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, net | 7.3 kg | 16.094 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Product Type | Support bracket |
General Specifications
| Application | Waveguide bridge kit, 24 in |
| Cable Runs, quantity | 24 |
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 812.8 mm | 32 in |
| Length | 152.4 mm | 6 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, net | 7.3 kg | 16.094 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
