PG-RMBH12

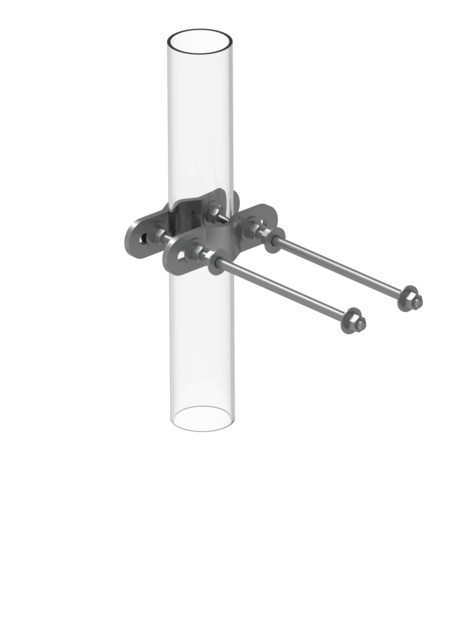

PIM-guard Round Member Cable Support Bracket for Block Hangers - Two 3/8" stainless steel threaded rods for up to 12 hangers. Install with torque wrench set at 10 to 15 ft-lb to meet carrier PIM requirements.
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Support bracket
Product Brand PIM-guard

General Specifications

Cable Runs, quantity 12
Mounting Pipe, 60.3–88.9 mm (2-3/8 in to 3-1/2 in) OD

Dimensions

Height 1.5 in | 38.1 mm
Width 5.5 in | 139.7 mm
Length 12 in | 304.8 mm
Mounting Diameter, maximum 2.4 in | 60.96 mm
Mounting Diameter, minimum 3.5 in | 88.9 mm

Material Specifications

Material Type Hot dip galvanized steel | Stainless steel

Packaging and Weights

Included Attachment hardware | Threaded rod | Clamps
Packaging quantity 1
Weight, net 2.6 kg | 5.732 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system

Product Classification

Product Type Support bracket
Product Brand PIM-guard

General Specifications

Cable Runs, quantity 12
Mounting Pipe, 60.3–88.9 mm (2-3/8 in to 3-1/2 in) OD

Dimensions

Height 1.5 in | 38.1 mm
Width 5.5 in | 139.7 mm
Length 12 in | 304.8 mm
Mounting Diameter, maximum 2.4 in | 60.96 mm
Mounting Diameter, minimum 3.5 in | 88.9 mm

Material Specifications

Material Type Hot dip galvanized steel | Stainless steel

Packaging and Weights

Included Attachment hardware | Threaded rod | Clamps
Packaging quantity 1
Weight, net 2.6 kg | 5.732 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
