EX-P1060

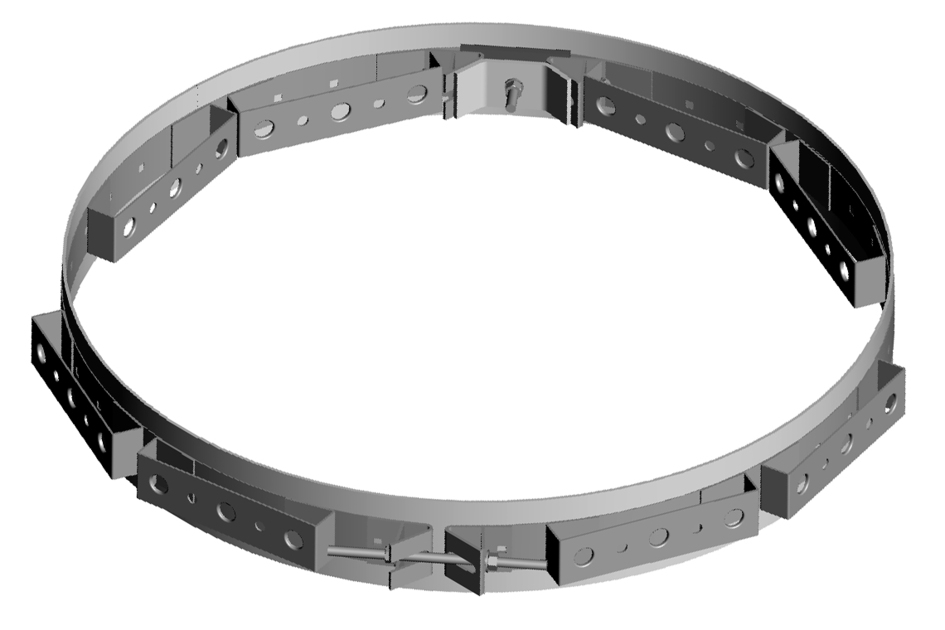

Ex-Press® Expansion/Compression Coaxial Cable Mounting Band; For patents, see www.cs-pat.com.
Specifications
Product Classification
| Portfolio | CommScope® |
| Product Type | Mounting band |
| Ordering Note | CommScope® non-standard product |
| Warranty | One year |
General Specifications
| Hole, quantity | 12 |
| Mounting | Access tube, 914.4–1524 mm (36–60 in) | Polygon monopole, 254–1524 mm (10–60 in) | Round monopole, 254–1524 mm (10–60 in) |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 1524 mm | 60 in |
| Length | 1524 mm | 60 in |
| Hole Size | 3/4 in | 7/16 in |
Outline Drawing
| Click on image to enlarge. |
Material Specifications
| Material Type | Aluminum | Hot dip galvanized steel |
Packaging and Weights
| Included | Bands | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, net | 2.8 kg | 6.173 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Portfolio | CommScope® |
| Product Type | Mounting band |
| Ordering Note | CommScope® non-standard product |
| Warranty | One year |
General Specifications
| Hole, quantity | 12 |
| Mounting | Access tube, 914.4–1524 mm (36–60 in) | Polygon monopole, 254–1524 mm (10–60 in) | Round monopole, 254–1524 mm (10–60 in) |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 1524 mm | 60 in |
| Length | 1524 mm | 60 in |
| Hole Size | 3/4 in | 7/16 in |
Material Specifications
| Material Type | Aluminum | Hot dip galvanized steel |
Packaging and Weights
| Included | Bands | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, net | 2.8 kg | 6.173 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
