204673-2A

Base Product: ENTRY-PANEL-SERIES

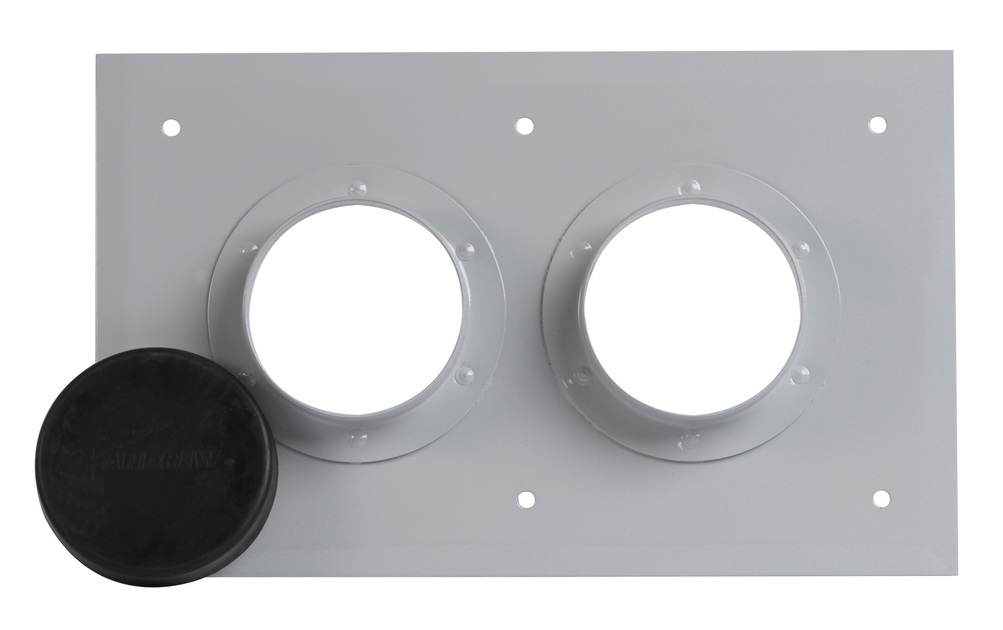

2 Port Entrance Panel, 1 x 2

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Entrance panel
Ordering Note CommScope® non-standard product

General Specifications

Color Gray
Entry Panel Port Size 101.6 mm | 4 in
Number of Ports 2
Panel Type Multiple

Dimensions

Height 241.3 mm | 9.5 in
Width 393.7 mm | 15.5 in

Material Specifications

Material Type Aluminum

Environmental Specifications

Weather Resistance Test Method 04AS00-03.9.0 | IEC 60529:2001, IP66

Packaging and Weights

Height, packed 668.02 mm | 26.3 in
Width, packed 459.74 mm | 18.1 in
Length, packed 50.8 mm | 2 in
Included Entry cap | Hardware | Port
Packaging quantity 1
Weight, gross 2.5 kg | 5.512 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
