PFP-PX-8M

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

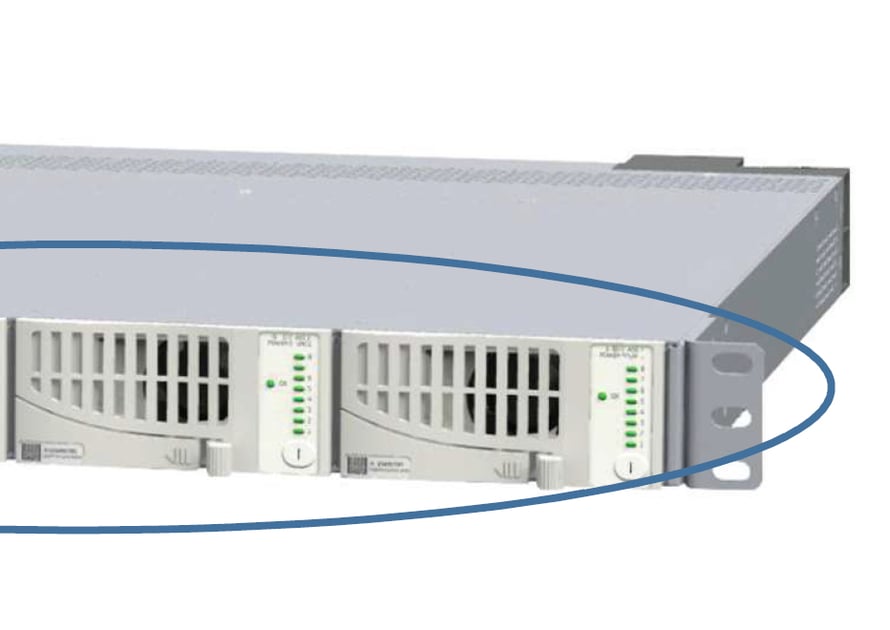

Power Express module, connects up to 8 Powered Fiber Cables
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Power supply module

Dimensions

Height 43.688 mm | 1.72 in
Width 87.376 mm | 3.44 in
Depth 322.326 mm | 12.69 in
Compatible Gauge Range 24–8 AWG

Electrical Specifications

Input Current Range 0–20 A
Input Voltage Range -42 to -60 Vdc
Output Voltage Range -42 to 58 Vdc
Output Voltage, nominal -57 Vdc
Electrical Safety Standard CSA C22.2 No. 60950-1-03
Electromagnetic Compatibility/Interference (EMC/EMI) FCC-CFR, Part 15, sub-part B | GR1089 Class A
Total Output Power 100 W, per circuit

Environmental Specifications

Operating Temperature -40 °C to +75 °C (-40 °F to +167 °F)
Relative Humidity 5%–95%, non-condensing
Standards Compliance EN 61000-4-2 level 4

Packaging and Weights

Packaging quantity 1
Packaging Type Carton
Weight, net 1.134 kg | 2.5 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
