RP-A2114

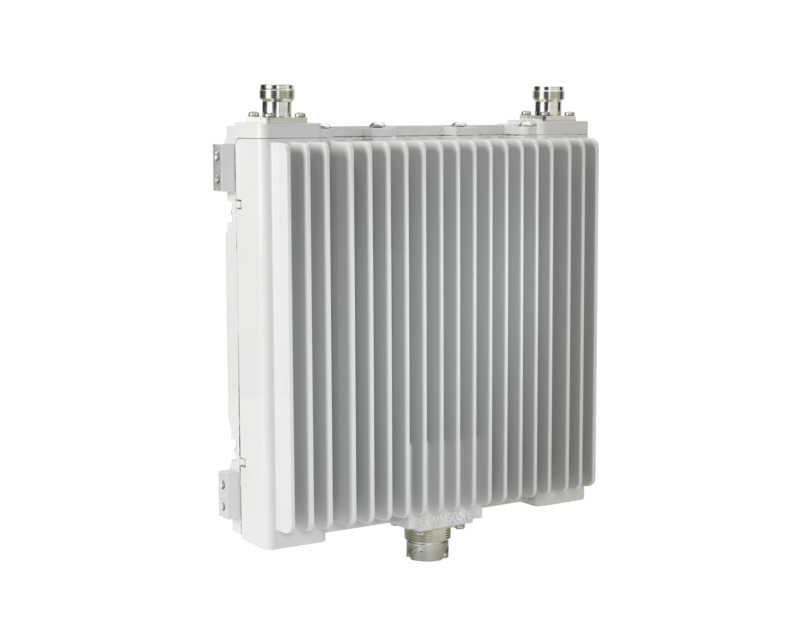

OneCell® Ruggedized Radio Point 2000-Americas 1 Radio, 3 Bands, External 4.3-10 DIN antenna ports
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • Pooled baseband processing with centralized scheduler
  • Smart Reuse for multi-sector throughput without border handovers or interference
  • Single PCI across multiple Radio Points
  • Joint Transmission and Reception
  • No borders or handovers within controller
Specifications

Product Classification

Product Type Radio point
Product Brand OneCell®

General Specifications

Technology LTE MIMO
Antenna Interface 4.3-10 coaxial connector
Antenna Location External
Antenna Quantity 2
Application LTE delivery for public venues and large enterprises
Boot and Storage Security Secure Boot, Secure Storage (TrE)
Controller to RP Management Security HTTPS
Fronthaul and OTA Security PDCP ciphering
Fronthaul Interface IP Ethernet LAN
General Standard 3GPP Release 10 Local Area Base Station
Health Standard FCC Part 27 | FCC Part 24E
Modulation Type DL: QPSK, 16QAM, 64QAM | UL: QPSK, 16QAM
Physical Interface RJ45/GigE
Radio Standard FCC Part 24E | FCC Part 27
Timing and Synchronization IEEE 1588 v2 (from controller)
Transmit Power 2 x 125 mW

Dimensions

Height 235 mm | 9.252 in
Width 235 mm | 9.252 in
Depth 107 mm | 4.213 in

Electrical Specifications

Input Voltage Range PoE+
Electrical Safety Standard UL 60950-1 (2nd Edition 2011) | IEC 60950-1:2005 (2nd Edition) +A1:2009 | CAN/CSA 22.2 no. 950
Electromagnetic Compatibility (EMC) US FCC Part 24E | US FCC Part 27
Frequency Band 1900 MHz | 700 MHz | 2100 MHz
License Band 4 | 13 | 2 | 10 | 12 | 17 | 25
Power Consumption 25 W

Mechanical Specifications

Transportation Vibration Standard ISTA-3A

Environmental Specifications

Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Ingress Protection Test Method IEC 60529:2001, IP66

Packaging and Weights

Weight, net 3.6 kg | 7.937 lb

Product Classification

Product Type Radio point
Product Brand OneCell®

General Specifications

Technology LTE MIMO
Antenna Interface 4.3-10 coaxial connector
Antenna Location External
Antenna Quantity 2
Application LTE delivery for public venues and large enterprises
Boot and Storage Security Secure Boot, Secure Storage (TrE)
Controller to RP Management Security HTTPS
Fronthaul and OTA Security PDCP ciphering
Fronthaul Interface IP Ethernet LAN
General Standard 3GPP Release 10 Local Area Base Station
Health Standard FCC Part 27 | FCC Part 24E
Modulation Type DL: QPSK, 16QAM, 64QAM | UL: QPSK, 16QAM
Physical Interface RJ45/GigE
Radio Standard FCC Part 24E | FCC Part 27
Timing and Synchronization IEEE 1588 v2 (from controller)
Transmit Power 2 x 125 mW

Dimensions

Height 235 mm | 9.252 in
Width 235 mm | 9.252 in
Depth 107 mm | 4.213 in

Electrical Specifications

Input Voltage Range PoE+
Electrical Safety Standard UL 60950-1 (2nd Edition 2011) | IEC 60950-1:2005 (2nd Edition) +A1:2009 | CAN/CSA 22.2 no. 950
Electromagnetic Compatibility (EMC) US FCC Part 24E | US FCC Part 27
Frequency Band 1900 MHz | 700 MHz | 2100 MHz
License Band 4 | 13 | 2 | 10 | 12 | 17 | 25
Power Consumption 25 W

Mechanical Specifications

Transportation Vibration Standard ISTA-3A

Environmental Specifications

Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Ingress Protection Test Method IEC 60529:2001, IP66

Packaging and Weights

Weight, net 3.6 kg | 7.937 lb
