760005264 | M81-SVHS-110-246

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

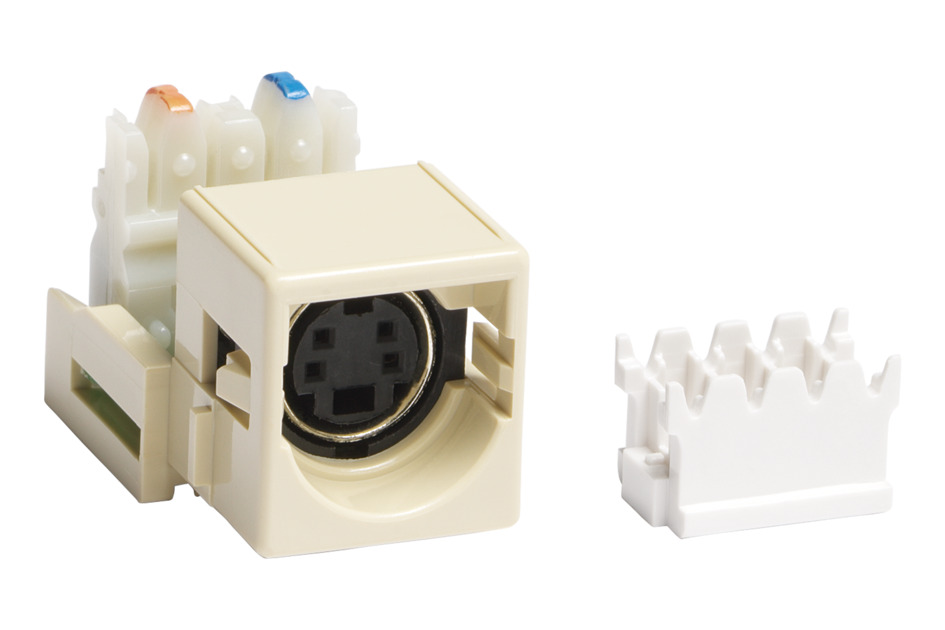

S-Video to 110 Punchdown Module, ivory

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Multimedia outlet

General Specifications

Color Ivory
Mounting Snap-in
UTP 110 Terminal Block 110 ohm

Electrical Specifications

Attenuation dc at Frequency, maximum 2 dB @ 5.5 MHz
Crosstalk @ Gain at Frequency -60 dB @ 5.5 MHz
Impedance 75 ohm
Insulation Resistance, minimum 50 mOhm

Material Specifications

Material Type High-impact, flame retardant, thermoplastic

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity 5%–95%, non-condensing
Flammability Rating UL 94 V-0

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
