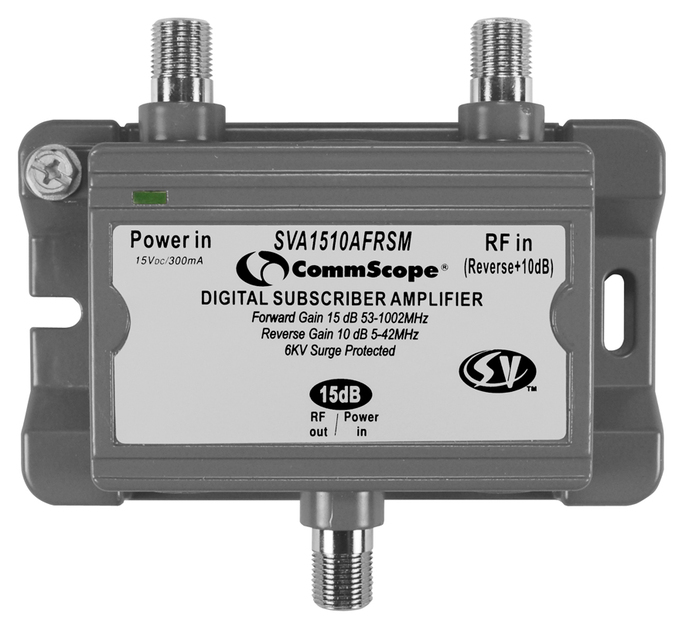

SVA1510AFRSM

HomeConnect® Two-way Mini Subscriber Amplifier, 15 dB forward, 10 dB reverse, one port

Specifications
Finish making your selections or clear them to view relevant specifications.
View
Find a Partner
Support

Product Classification

Product Type RF amplifier
Product Brand HomeConnect®

General Specifications

Device Type Two-way subscriber amplifier
Application Indoor | Outdoor
Video Ports, quantity 1
Video Standard NTSC

Electrical Specifications

Distortion Performance (CCN), minimum 70 dBc
Distortion Performance (CSO), minimum 62 dBc
Distortion Performance (CTB), minimum 75 dBc
Distortion Performance (DSO), minimum 55 dBc
Distortion Performance (DTO), minimum 55 dBc
Distortion Performance (X-Mod), minimum 73 dB
Group Delay, channel 2–4, maximum 20 ns
Group Delay, channel 5–6, maximum 5 ns
Group Delay, reverse, maximum 20 ns
Hum Modulation, minimum -75 dB
Impedance 75 ohm
Operating Current at Voltage 300 mA @ 15 Vdc
Shielding Effectiveness, minimum 100 dB
Surge Capability Test Method ANSI/SCTE 81 | IEEE C62.41-A3 (6 kV, 200 A, Ring wave) on all ports | IEEE C62.41-B3 (6 kV, 3000 A, Combination wave) on input port
Surge Capability Waveform 1.2/50 voltage and 8/20 current combination waveform | 100 kHz ring wave waveform

Electrical Specifications, Isolation

Isolation at Frequency Band, power port to RF output, minimum 55 dB @ 5–1002 MHz

Electrical Specifications, Rx (Uplink)

Flatness ±1.0 dB
Gain 10 dB
Return Loss, minimum 18 dB
Noise Figure, maximum 10.5 dB
Operating Frequency Band 5 – 42 MHz

Electrical Specifications, Tx (Downlink)

Flatness ±0.75 dB
Gain 15 dB
Noise Figure, maximum 4.5 dB
Operating Frequency Band 53 – 1002 MHz
Return Loss, minimum 18 dB

Environmental Specifications

Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Safety Standard CE | SCTE

Packaging and Weights

Height, packed 190.5 mm | 7.5 in
Width, packed 228.6 mm | 9 in
Length, packed 469.9 mm | 18.5 in
Carton Quantity 20
Included Power adapter
Weight, gross 8.165 kg | 18 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Product Type RF amplifier
Product Brand HomeConnect®

General Specifications

Device Type Two-way subscriber amplifier
Application Indoor | Outdoor
Video Ports, quantity 1
Video Standard NTSC

Electrical Specifications

Distortion Performance (CCN), minimum 70 dBc
Distortion Performance (CSO), minimum 62 dBc
Distortion Performance (CTB), minimum 75 dBc
Distortion Performance (DSO), minimum 55 dBc
Distortion Performance (DTO), minimum 55 dBc
Distortion Performance (X-Mod), minimum 73 dB
Group Delay, channel 2–4, maximum 20 ns
Group Delay, channel 5–6, maximum 5 ns
Group Delay, reverse, maximum 20 ns
Hum Modulation, minimum -75 dB
Impedance 75 ohm
Operating Current at Voltage 300 mA @ 15 Vdc
Shielding Effectiveness, minimum 100 dB
Surge Capability Test Method ANSI/SCTE 81 | IEEE C62.41-A3 (6 kV, 200 A, Ring wave) on all ports | IEEE C62.41-B3 (6 kV, 3000 A, Combination wave) on input port
Surge Capability Waveform 1.2/50 voltage and 8/20 current combination waveform | 100 kHz ring wave waveform

Electrical Specifications, Isolation

Isolation at Frequency Band, power port to RF output, minimum 55 dB @ 5–1002 MHz

Electrical Specifications, Rx (Uplink)

Flatness ±1.0 dB
Gain 10 dB
Return Loss, minimum 18 dB
Noise Figure, maximum 10.5 dB
Operating Frequency Band 5 – 42 MHz

Electrical Specifications, Tx (Downlink)

Flatness ±0.75 dB
Gain 15 dB
Noise Figure, maximum 4.5 dB
Operating Frequency Band 53 – 1002 MHz
Return Loss, minimum 18 dB

Environmental Specifications

Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Safety Standard CE | SCTE

Packaging and Weights

Height, packed 190.5 mm | 7.5 in
Width, packed 228.6 mm | 9 in
Length, packed 469.9 mm | 18.5 in
Carton Quantity 20
Included Power adapter
Weight, gross 8.165 kg | 18 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
