    AVA7RK-50, HELIAX® Andrew Virtual Air™ Coaxial Cable, corrugated copper, 1-5/8 in, black non-halogenated, fire retardant polyolefin jacket Cca-s2, d2, a1 (CPR testing is conducted annually please reference the website for latest classification)

LDF7RN-50A

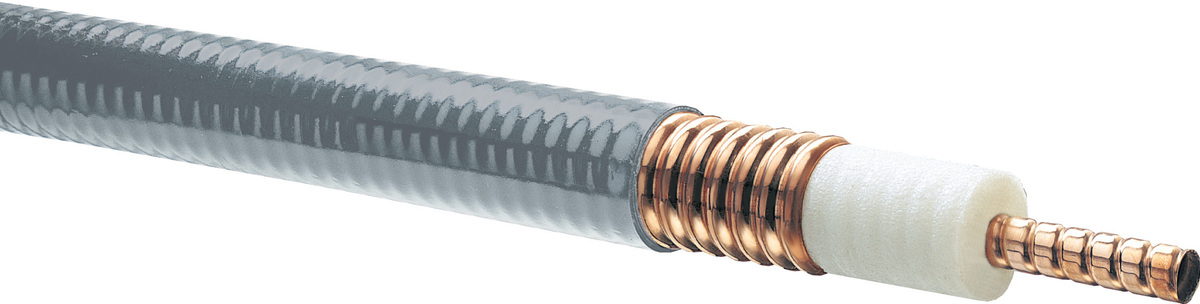

LDF7-50A, HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 1-5/8 in, gray non-halogenated, fire retardant polyolefin jacket

Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product Classification

Product Type Coaxial wireless cable
Product Brand HELIAX®
Product Series LDF7-50A

General Specifications

Flexibility Standard
Jacket Color Gray
Performance Note Attenuation values typical, guaranteed within 5%

Dimensions

Diameter Over Dielectric 44.196 mm | 1.74 in
Diameter Over Jacket 50.292 mm | 1.98 in
Inner Conductor OD 17.272 mm | 0.68 in
Outer Conductor OD 46.482 mm | 1.83 in
Nominal Size 1-5/8 in

Electrical Specifications

Cable Impedance 50 ohm ±1 ohm
Capacitance 75.8 pF/m | 23.104 pF/ft
dc Resistance, Inner Conductor 0.82 ohms/km | 0.25 ohms/kft
dc Resistance, Outer Conductor 0.525 ohms/km | 0.16 ohms/kft
dc Test Voltage 11000 V
Inductance 0.19 µH/m | 0.058 µH/ft
Insulation Resistance 100000 MOhms-km
Jacket Spark Test Voltage (rms) 8000 V
Operating Frequency Band 1 – 2700 MHz
Peak Power 315 kW
Velocity 88 %

Attenuation

Attenuation

Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft) Average Power (kW)
1.0 MHz 0.063 0.019 174.46
1.5 MHz 0.077 0.024 142.22
2.0 MHz 0.089 0.027 122.99
10.0 MHz 0.202 0.062 54.32
20.0 MHz 0.289 0.088 38.05
30.0 MHz 0.356 0.109 30.85
50.0 MHz 0.465 0.142 23.63
85.0 MHz 0.615 0.188 17.86
88.0 MHz 0.627 0.191 17.53
100.0 MHz 0.671 0.205 16.38
108.0 MHz 0.699 0.213 15.72
150.0 MHz 0.834 0.254 13.17
174.0 MHz 0.904 0.276 12.15
200.0 MHz 0.976 0.297 11.26
204.0 MHz 0.986 0.301 11.14
300.0 MHz 1.220 0.372 9.01
400.0 MHz 1.433 0.437 7.67
450.0 MHz 1.532 0.467 7.17
460.0 MHz 1.551 0.473 7.09
500.0 MHz 1.627 0.496 6.76
512.0 MHz 1.649 0.503 6.67
600.0 MHz 1.806 0.550 6.09
700.0 MHz 1.974 0.602 5.57
800.0 MHz 2.134 0.650 5.15
824.0 MHz 2.171 0.662 5.06
894.0 MHz 2.278 0.694 4.83
960.0 MHz 2.376 0.724 4.63
1000.0 MHz 2.434 0.742 4.52
1218.0 MHz 2.738 0.835 4.01
1250.0 MHz 2.781 0.848 3.95
1500.0 MHz 3.106 0.947 3.54
1700.0 MHz 3.354 1.022 3.28
1794.0 MHz 3.467 1.057 3.17
1800.0 MHz 3.474 1.059 3.16
2000.0 MHz 3.709 1.131 2.96
2100.0 MHz 3.824 1.165 2.87
2200.0 MHz 3.937 1.200 2.79
2300.0 MHz 4.049 1.234 2.71
2500.0 MHz 4.267 1.301 2.58
2700.0 MHz 4.481 1.366 2.45

Material Specifications

Dielectric Material Foam PE
Jacket Material Non-halogenated, fire retardant polyolefin
Inner Conductor Material Corrugated copper tube
Outer Conductor Material Corrugated copper

Mechanical Specifications

Minimum Bend Radius, multiple Bends 508 mm | 20 in
Minimum Bend Radius, Single Bend 203.2 mm | 8 in
Number of Bends, minimum 15
Number of Bends, typical 50
Tensile Strength 318 kg | 701.069 lb
Bending Moment 54.2 N-m | 479.71 in lb
Flat Plate Crush Strength 2.1 kg/mm | 117.595 lb/in

Environmental Specifications

Installation temperature -25 °C to +60 °C (-13 °F to +140 °F)
Operating Temperature -30 °C to +80 °C (-22 °F to +176 °F)
Storage Temperature -30 °C to +80 °C (-22 °F to +176 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Fire Retardancy Test Method UL 1666/CATVR
Smoke Index Test Method IEC 61034
Toxicity Index Test Method IEC 60754-1 | IEC 60754-2

Packaging and Weights

Cable weight 1.52 kg/m | 1.021 lb/ft

Regulatory Compliance/Certifications

Agency Classification
UL/ETL Certification CATVR

Product Classification

Product Type Coaxial wireless cable
Product Brand HELIAX®
Product Series LDF7-50A

General Specifications

Flexibility Standard
Jacket Color Gray
Performance Note Attenuation values typical, guaranteed within 5%

Dimensions

Diameter Over Dielectric 44.196 mm | 1.74 in
Diameter Over Jacket 50.292 mm | 1.98 in
Inner Conductor OD 17.272 mm | 0.68 in
Outer Conductor OD 46.482 mm | 1.83 in
Nominal Size 1-5/8 in

Electrical Specifications

Cable Impedance 50 ohm ±1 ohm
Capacitance 75.8 pF/m | 23.104 pF/ft
dc Resistance, Inner Conductor 0.82 ohms/km | 0.25 ohms/kft
dc Resistance, Outer Conductor 0.525 ohms/km | 0.16 ohms/kft
dc Test Voltage 11000 V
Inductance 0.19 µH/m | 0.058 µH/ft
Insulation Resistance 100000 MOhms-km
Jacket Spark Test Voltage (rms) 8000 V
Operating Frequency Band 1 – 2700 MHz
Peak Power 315 kW
Velocity 88 %

Attenuation

Attenuation

Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft) Average Power (kW)
1.0 MHz 0.063 0.019 174.46
1.5 MHz 0.077 0.024 142.22
2.0 MHz 0.089 0.027 122.99
10.0 MHz 0.202 0.062 54.32
20.0 MHz 0.289 0.088 38.05
30.0 MHz 0.356 0.109 30.85
50.0 MHz 0.465 0.142 23.63
85.0 MHz 0.615 0.188 17.86
88.0 MHz 0.627 0.191 17.53
100.0 MHz 0.671 0.205 16.38
108.0 MHz 0.699 0.213 15.72
150.0 MHz 0.834 0.254 13.17
174.0 MHz 0.904 0.276 12.15
200.0 MHz 0.976 0.297 11.26
204.0 MHz 0.986 0.301 11.14
300.0 MHz 1.220 0.372 9.01
400.0 MHz 1.433 0.437 7.67
450.0 MHz 1.532 0.467 7.17
460.0 MHz 1.551 0.473 7.09
500.0 MHz 1.627 0.496 6.76
512.0 MHz 1.649 0.503 6.67
600.0 MHz 1.806 0.550 6.09
700.0 MHz 1.974 0.602 5.57
800.0 MHz 2.134 0.650 5.15
824.0 MHz 2.171 0.662 5.06
894.0 MHz 2.278 0.694 4.83
960.0 MHz 2.376 0.724 4.63
1000.0 MHz 2.434 0.742 4.52
1218.0 MHz 2.738 0.835 4.01
1250.0 MHz 2.781 0.848 3.95
1500.0 MHz 3.106 0.947 3.54
1700.0 MHz 3.354 1.022 3.28
1794.0 MHz 3.467 1.057 3.17
1800.0 MHz 3.474 1.059 3.16
2000.0 MHz 3.709 1.131 2.96
2100.0 MHz 3.824 1.165 2.87
2200.0 MHz 3.937 1.200 2.79
2300.0 MHz 4.049 1.234 2.71
2500.0 MHz 4.267 1.301 2.58
2700.0 MHz 4.481 1.366 2.45

Material Specifications

Dielectric Material Foam PE
Jacket Material Non-halogenated, fire retardant polyolefin
Inner Conductor Material Corrugated copper tube
Outer Conductor Material Corrugated copper

Mechanical Specifications

Minimum Bend Radius, multiple Bends 508 mm | 20 in
Minimum Bend Radius, Single Bend 203.2 mm | 8 in
Number of Bends, minimum 15
Number of Bends, typical 50
Tensile Strength 318 kg | 701.069 lb
Bending Moment 54.2 N-m | 479.71 in lb
Flat Plate Crush Strength 2.1 kg/mm | 117.595 lb/in

Environmental Specifications

Installation temperature -25 °C to +60 °C (-13 °F to +140 °F)
Operating Temperature -30 °C to +80 °C (-22 °F to +176 °F)
Storage Temperature -30 °C to +80 °C (-22 °F to +176 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Fire Retardancy Test Method UL 1666/CATVR
Smoke Index Test Method IEC 61034
Toxicity Index Test Method IEC 60754-1 | IEC 60754-2

Packaging and Weights

Cable weight 1.52 kg/m | 1.021 lb/ft

Regulatory Compliance/Certifications

Agency Classification
UL/ETL Certification CATVR

Product Compliance Documentation

Global Trade Data
Statement of Compliance RoHS/REACH
