760084152 | CR15-18WRSK

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

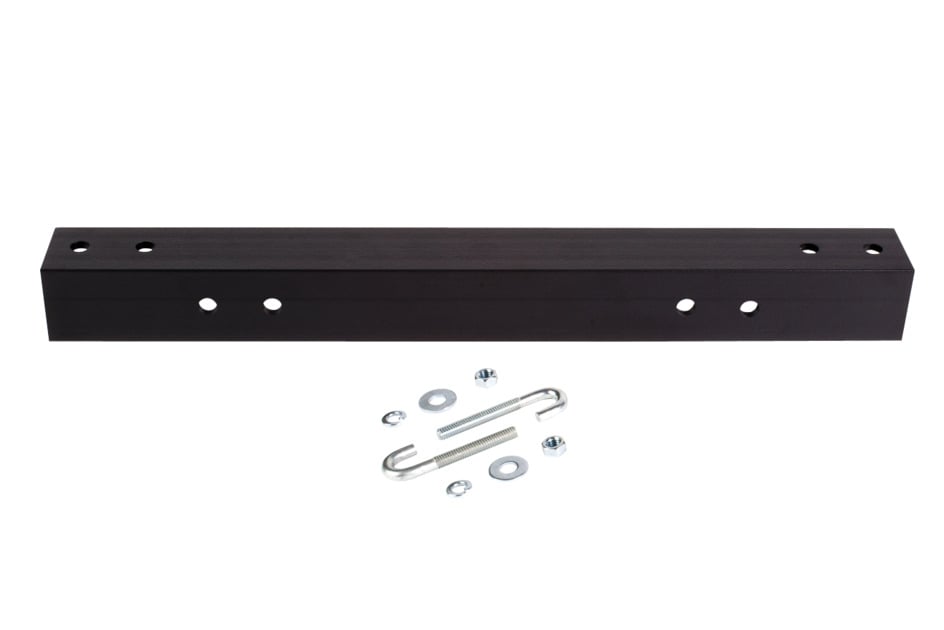

Cable Runway, wall angle support kit ,15 inch (381 mm), 18 inch (457 mm) wall rail support kit, black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Support kit

General Specifications

Color Black

Dimensions

Height 50.8 mm | 2 in
Adjustable Width, maximum 457.2 mm | 18 in
Width 381 mm | 15 in
Depth 50.8 mm | 2 in

Material Specifications

Finish Powder-coated, smooth
Material Type Steel

Mechanical Specifications

Static Load Rating 20.412 kg | 45 lb

Environmental Specifications

Safety Standard UL | cUL

Packaging and Weights

Included Instruction sheet | Two 5/16-18 KEPS hex nuts | Two J-bolts | Wall rail support bracket
Packaging quantity 1
Packaging Type Flat packed
Weight, net 3.175 kg | 7 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Support kit

General Specifications

Color Black

Dimensions

Height 50.8 mm | 2 in
Adjustable Width, maximum 457.2 mm | 18 in
Width 381 mm | 15 in
Depth 50.8 mm | 2 in

Material Specifications

Finish Powder-coated, smooth
Material Type Steel

Mechanical Specifications

Static Load Rating 20.412 kg | 45 lb

Environmental Specifications

Safety Standard UL | cUL

Packaging and Weights

Included Instruction sheet | Two 5/16-18 KEPS hex nuts | Two J-bolts | Wall rail support bracket
Packaging quantity 1
Packaging Type Flat packed
Weight, net 3.175 kg | 7 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
