This product was discontinued on: June 30, 2022

For other alternatives, please contact us for more information.

0 Replacement products available

F07891-000 | VCKT-160-12-INT

  • Available in:
  • EMEA

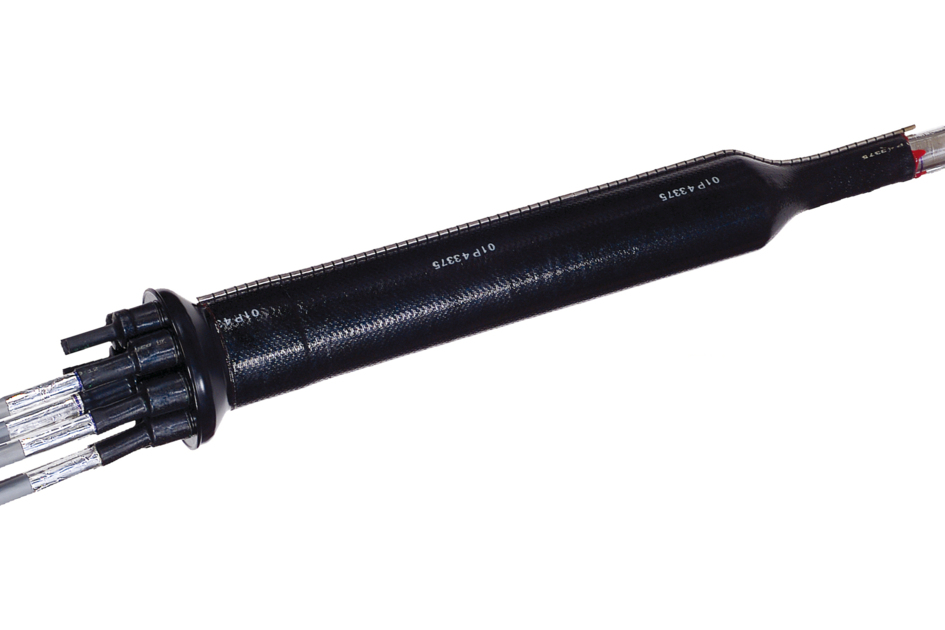

VCKT Vault Copper Closure, unpressurized, heat shrink, 740 mm joint length, 12 MDF cable outlets

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Vault closure system for the distribution of telecommunication cables in telephone exchanges
  • Flexibility arises from selective use of break‑out ports up to 3/9/12 or 24 MDF cables
  • Vertical installation with re-entry option of the splice area for testing and measuring

Product Classification

Regional Availability EMEA
Product Type Unpressurized heat shrink closure
Product Series VCKT

General Specifications

Application For use with Polyethylene and metal jacketed cables
Branch-off Clip To be ordered seperately
Cable Capacity, maximum 13
Cable Sealing Type Hotmelt adhesive
Closure Style Single-ended
Color Black
Splice Protection Type Metal canister

Dimensions

Length 950 mm | 37.402 in
Single Cable Diameter, maximum 36 mm | 1.417 in
Single Cable Diameter, minimum 12 mm | 0.472 in
Splice Bundle Diameter, maximum 158 mm | 6.22 in
Sheath Opening, nominal 740 mm | 29.134 in

Environmental Specifications

Environmental Space Above ground | Below ground | Buried

Packaging and Weights

Included Abrasive strip | Aluminum closing strip | Aluminum foil | Cleaning tissues | Flexible stainless steel channels | Heatshrinkable sleeve | Metal canister | Shield continuity wire | Underclips
Packaging quantity 1
Packaging Type Bag | Carton

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
