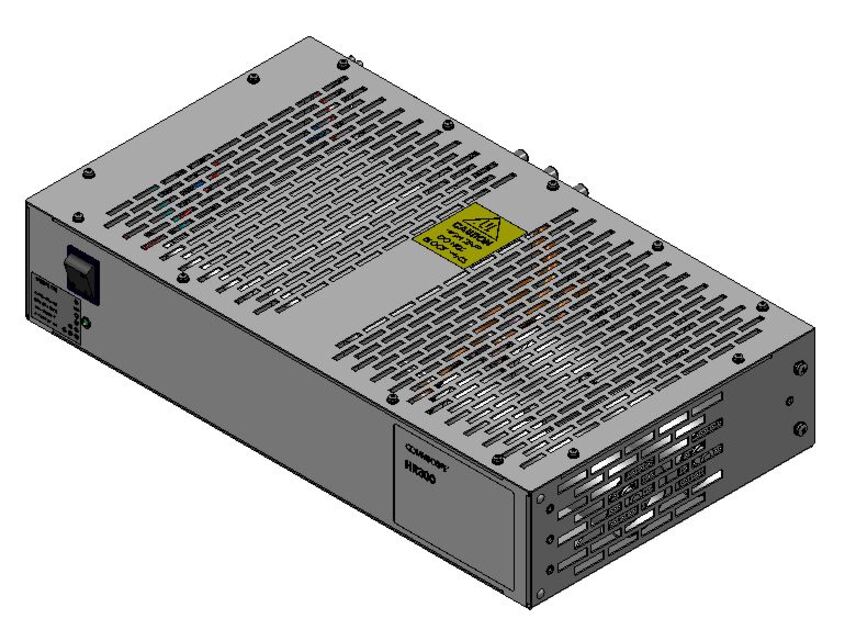

HR300

Heat Regenerated Dehydrator, 19 in rack mountable, 3.0 kPa (0.44 psig), with summary alarms, 48 Vdc ((ac operation possible using optional power supply purchased separately)
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Dehydrator

General Specifications

Alarm Type Summary
Cut In/Out Pressure Type Continuous (default set to 3.0 kPa | 0.4 psig)
Dehydrator Type Automatically regenerating Desiccant
Dew Point Better than -45 °C (-50 °F) at 95% RH at +40 °C (+104 °F)
Flow Rate, nominal 5 SLPM
High-Humidity Alarm 10% RH, optional, sold separately
High-Pressure Alarm Factory set (default set to 4.5 kPa | 0.7 psig)
Low-Pressure Alarm Factory set (default set to 1.5 kPa | 0.22 psig)
Mounting Rack
Port Count 4
Port Type 3/8 in PE tube
Power Cord dc power cord
Rack Type EIA 19 in | ETSI N3 (optional)
Rack Units 2
Regulated Output Pressure Type Factory set, continuous

Dimensions

Product Height 91.8 mm | 3.614 in
Product Width 439.4 mm | 17.299 in
Product Depth 304.8 mm | 12 in
Volume Capacity, maximum 1 m³ | 35.315 ft³

Outline Drawing–Front

Click on image to enlarge.

Outline Drawing–Side

Click on image to enlarge.

Outline Drawing–Back

Click on image to enlarge.

Outline Drawing–Top

Click on image to enlarge.

Electrical Specifications

Alarm Contact Rating Handles at least 0.5 A (ac or dc)
Power Consumption, maximum 45 W
Voltage 48–60 Vdc ±10%
Voltage Type dc

Environmental Specifications

Operating Temperature -5 °C to +50 °C (+23 °F to +122 °F)

Packaging and Weights

Weight, gross 11.2 kg | 24.692 lb
Weight, net 6.3 kg | 13.889 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Product Type Dehydrator

General Specifications

Alarm Type Summary
Cut In/Out Pressure Type Continuous (default set to 3.0 kPa | 0.4 psig)
Dehydrator Type Automatically regenerating Desiccant
Dew Point Better than -45 °C (-50 °F) at 95% RH at +40 °C (+104 °F)
Flow Rate, nominal 5 SLPM
High-Humidity Alarm 10% RH, optional, sold separately
High-Pressure Alarm Factory set (default set to 4.5 kPa | 0.7 psig)
Low-Pressure Alarm Factory set (default set to 1.5 kPa | 0.22 psig)
Mounting Rack
Port Count 4
Port Type 3/8 in PE tube
Power Cord dc power cord
Rack Type EIA 19 in | ETSI N3 (optional)
Rack Units 2
Regulated Output Pressure Type Factory set, continuous

Dimensions

Product Height 91.8 mm | 3.614 in
Product Width 439.4 mm | 17.299 in
Product Depth 304.8 mm | 12 in
Volume Capacity, maximum 1 m³ | 35.315 ft³

Electrical Specifications

Alarm Contact Rating Handles at least 0.5 A (ac or dc)
Power Consumption, maximum 45 W
Voltage 48–60 Vdc ±10%
Voltage Type dc

Environmental Specifications

Operating Temperature -5 °C to +50 °C (+23 °F to +122 °F)

Packaging and Weights

Weight, gross 11.2 kg | 24.692 lb
Weight, net 6.3 kg | 13.889 lb
Click on image to enlarge.
Click on image to enlarge.
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
