This product was discontinued on: May 31, 2016

For other alternatives, please contact us for more information.

0 Replacement products available

DB380-5083-C4M

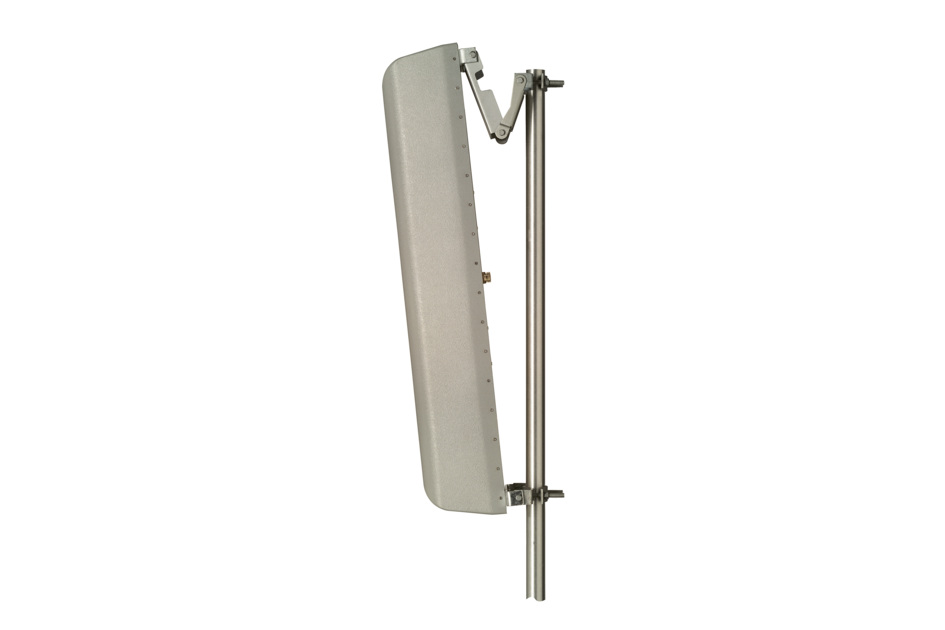

Heavy duty single point mount to secure the center bracket of BSA panels to pipes with an OD measuring 2.4-4.5" (60-115mm).

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
Heavy duty single point mount to secure the center bracket of BSA panels to pipes with an OD measuring 2.4"-4.5" (60-115mm). When combined with DB380-5083-C4, enables three point mounting capability for the largest BSA panels. Provides superior superior windload performance.

Product Classification

Product Type Downtilt mounting kit

General Specifications

Application Outdoor
Color Silver

Dimensions

Compatible Diameter, maximum 114.3 mm | 4.5 in
Compatible Diameter, minimum 61 mm | 2.402 in
Weight, net 3.3 kg | 7.275 lb

Material Specifications

Material Type Galvanized steel

Packaging and Weights

Included Brackets | Hardware
Packaging quantity 1
Weight, gross 3.5 kg | 7.716 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
