This product was discontinued on: November 30, 2023

For other alternatives, please contact us for more information.

0 Replacement products available

RZVV-65A-R4

8-port sector antenna, 2x 694–960, 2x 1427-2690 and 4x 1695–2690 MHz, 65° HPBW, 4x RET

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 6
RF Connector Quantity, low band 2
RF Connector Quantity, total 8

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (3) | Low band (1)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 395 mm | 15.551 in
Depth 203 mm | 7.992 in
Length 1499 mm | 59.016 in
Net Weight, without mounting kit 22.6 kg | 49.824 lb

Array Layout

Click on image to enlarge.

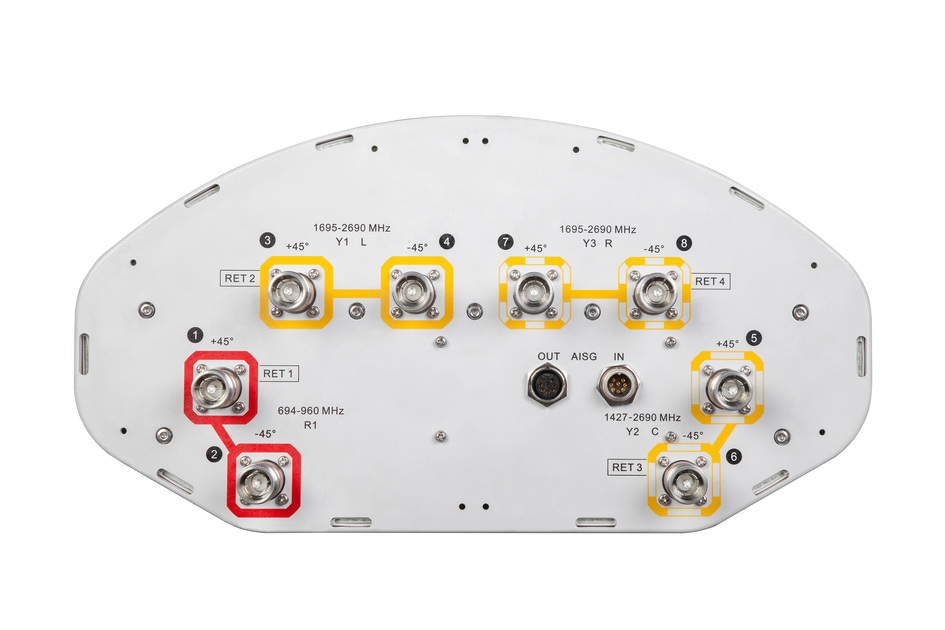

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–1920 1920–2180 2300–2500 2500–2690
Gain, dBi 13.8 14.2 14.2 15.3 16.8 17.6 18.0 17.9
Beamwidth, Horizontal, degrees 72 70 68 67 68 64 56 55
Beamwidth, Vertical, degrees 16.7 15.2 14.1 9.4 7.4 6.6 5.8 5.4
Beam Tilt, degrees 2–18 2–18 2–18 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 20 19 17 18 20 19 18 17
Front-to-Back Ratio at 180°, dB 35 36 33 29 33 33 32 29
Isolation, Cross Polarization, dB 28 28 28 26 28 28 28 28
Isolation, Inter-band, dB 28 28 28 28 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 250 200 200

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–1920 1920–2180 2300–2500 2500–2690
Gain by all Beam Tilts, average, dBi 13.5 13.9 13.9 14.9 16.3 17.1 17.6 17.4
Gain by all Beam Tilts Tolerance, dB ±0.3 ±0.3 ±0.4 ±0.5 ±0.8 ±0.6 ±0.5 ±0.7
Gain by Beam Tilt, average, dBi 2 ° | 13.5
10 ° | 13.6
18 ° | 13.3
2 ° | 13.8
10 ° | 14.0
18 ° | 13.8
2 ° | 13.9
10 ° | 14.0
18 ° | 13.6
2 ° | 15.0
7 ° | 15.0
12 ° | 14.7
2 ° | 16.1
7 ° | 16.4
12 ° | 16.1
2 ° | 16.9
7 ° | 17.3
12 ° | 17.0
2 ° | 17.6
7 ° | 17.8
12 ° | 17.2
2 ° | 17.2
7 ° | 17.6
12 ° | 17.0
Beamwidth, Horizontal Tolerance, degrees ±2.5 ±2.4 ±2.1 ±5.6 ±6.1 ±7.1 ±5.5 ±7.3
Beamwidth, Vertical Tolerance, degrees ±1.2 ±0.8 ±1 ±0.6 ±0.7 ±0.6 ±0.5 ±0.3
USLS, beampeak to 20° above beampeak, dB 16 14 15 14 13
Front-to-Back Total Power at 180° ± 30°, dB 23 23 22 26 24 25 26 25
CPR at Boresight, dB 16 14 15 18 20 21 20 19
CPR at Sector, dB 10 9 7 8 8 10 8 4

Mechanical Specifications

Wind Loading @ Velocity, frontal 376.0 N @ 150 km/h (84.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 192.0 N @ 150 km/h (43.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 480.0 N @ 150 km/h (107.9 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 361.0 N @ 150 km/h (81.2 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 523 mm | 20.591 in
Depth, packed 384 mm | 15.118 in
Length, packed 1620 mm | 63.78 in
Weight, gross 36.8 kg | 81.13 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 6
RF Connector Quantity, low band 2
RF Connector Quantity, total 8

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (3) | Low band (1)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 395 mm | 15.551 in
Depth 203 mm | 7.992 in
Length 1499 mm | 59.016 in
Net Weight, without mounting kit 22.6 kg | 49.824 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–1920 1920–2180 2300–2500 2500–2690
Gain, dBi 13.8 14.2 14.2 15.3 16.8 17.6 18.0 17.9
Beamwidth, Horizontal, degrees 72 70 68 67 68 64 56 55
Beamwidth, Vertical, degrees 16.7 15.2 14.1 9.4 7.4 6.6 5.8 5.4
Beam Tilt, degrees 2–18 2–18 2–18 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 20 19 17 18 20 19 18 17
Front-to-Back Ratio at 180°, dB 35 36 33 29 33 33 32 29
Isolation, Cross Polarization, dB 28 28 28 26 28 28 28 28
Isolation, Inter-band, dB 28 28 28 28 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 250 200 200

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–1920 1920–2180 2300–2500 2500–2690
Gain by all Beam Tilts, average, dBi 13.5 13.9 13.9 14.9 16.3 17.1 17.6 17.4
Gain by all Beam Tilts Tolerance, dB ±0.3 ±0.3 ±0.4 ±0.5 ±0.8 ±0.6 ±0.5 ±0.7
Gain by Beam Tilt, average, dBi 2 ° | 13.5;10 ° | 13.6; 18 ° | 13.3 2 ° | 13.8;10 ° | 14.0; 18 ° | 13.8 2 ° | 13.9;10 ° | 14.0; 18 ° | 13.6 2 ° | 15.0; 7 ° | 15.0;12 ° | 14.7 2 ° | 16.1; 7 ° | 16.4;12 ° | 16.1 2 ° | 16.9; 7 ° | 17.3;12 ° | 17.0 2 ° | 17.6; 7 ° | 17.8;12 ° | 17.2 2 ° | 17.2; 7 ° | 17.6;12 ° | 17.0
Beamwidth, Horizontal Tolerance, degrees ±2.5 ±2.4 ±2.1 ±5.6 ±6.1 ±7.1 ±5.5 ±7.3
Beamwidth, Vertical Tolerance, degrees ±1.2 ±0.8 ±1 ±0.6 ±0.7 ±0.6 ±0.5 ±0.3
USLS, beampeak to 20° above beampeak, dB 16 14 15 14 13
Front-to-Back Total Power at 180° ± 30°, dB 23 23 22 26 24 25 26 25
CPR at Boresight, dB 16 14 15 18 20 21 20 19
CPR at Sector, dB 10 9 7 8 8 10 8 4

Mechanical Specifications

Wind Loading @ Velocity, frontal 376.0 N @ 150 km/h (84.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 192.0 N @ 150 km/h (43.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 480.0 N @ 150 km/h (107.9 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 361.0 N @ 150 km/h (81.2 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 523 mm | 20.591 in
Depth, packed 384 mm | 15.118 in
Length, packed 1620 mm | 63.78 in
Weight, gross 36.8 kg | 81.13 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
