This product was discontinued on: March 31, 2023

For other alternatives, please contact us for more information.

0 Replacement products available

HBXX-6513DS-VTM | HBXX-6513DS-A2M

4-port sector antenna, 4x 1710–2170 MHz, 65° HPBW, RET compatible

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Two DualPol® antennas under one radome
Each antenna is independently capable of field adjustable electrical tilt
Continuous wideband operation

Specifications

General Specifications

Antenna Type	Sector
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	PVC, UV resistant
Radiator Material	Low loss circuit board
Reflector Material	Aluminum

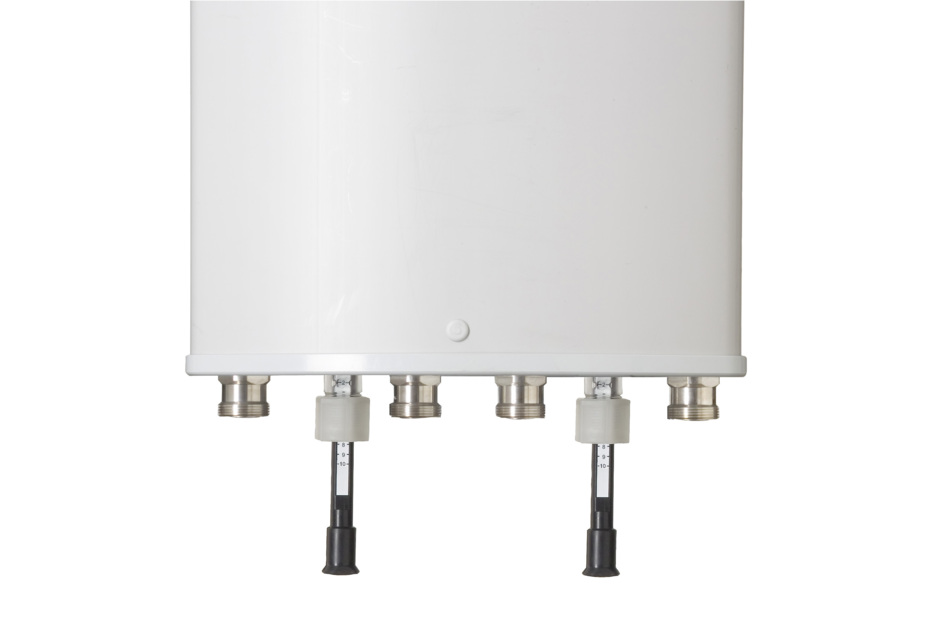

RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, total	4

Remote Electrical Tilt (RET) Information

Model with Factory Installed AISG 2.0 Actuator

HBXX-6513DS-A2M

Dimensions

Width	305 mm \| 12.008 in
Depth	166 mm \| 6.535 in
Length	695 mm \| 27.362 in
Net Weight, without mounting kit	7.9 kg \| 17.416 lb

Array Layout

Click on image to enlarge.

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	1710 – 2170 MHz
Polarization	±45°

Electrical Specifications

Frequency Band, MHz	1710–1880	1850–1990	1920–2170
Gain, dBi	14.5	14.6	14.9
Beamwidth, Horizontal, degrees	67	66	64
Beamwidth, Vertical, degrees	14.8	14	13.4
Beam Tilt, degrees	0–12	0–12	0–12
USLS (First Lobe), dB	15	15	15
Front-to-Back Ratio at 180°, dB	30	30	30
Front-to-Back Total Power at 180° ± 30°, dB	26	27	27
CPR at Boresight, dB	22	22	22
CPR at Sector, dB	7	8	8
Isolation, Cross Polarization, dB	30	30	30
VSWR \| Return loss, dB	1.4 \| 15.6	1.4 \| 15.6	1.4 \| 15.6
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150
Input Power per Port, maximum, watts	350	350	350

Electrical Specifications, BASTA

Frequency Band, MHz	1710–1880	1850–1990	1920–2170
Gain by all Beam Tilts, average, dBi	14.2	14.3	14.6
Gain by all Beam Tilts Tolerance, dB	±0.8	±0.7	±0.7
Gain by Beam Tilt, average, dBi	0 ° \| 14.6 6 ° \| 14.4 12 ° \| 13.5	0 ° \| 14.7 6 ° \| 14.5 12 ° \| 13.7	0 ° \| 15.0 6 ° \| 14.7 12 ° \| 13.8
Beamwidth, Horizontal Tolerance, degrees	±3.7	±3.3	±3.5
Beamwidth, Vertical Tolerance, degrees	±1.4	±0.9	±1.1
USLS, beampeak to 20° above beampeak, dB	15	15	16
CPR at Boresight, dB	22	22	22
CPR at Sector, dB	7	8	8

Mechanical Specifications

Wind Loading @ Velocity, frontal	223.0 N @ 150 km/h (50.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	53.0 N @ 150 km/h (11.9 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	259.0 N @ 150 km/h (58.2 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Packaging and Weights

Width, packed	485 mm \| 19.094 in
Depth, packed	349 mm \| 13.74 in
Length, packed	1253 mm \| 49.331 in
Weight, gross	17.9 kg \| 39.463 lb

Regulatory Compliance/Certifications

Agency	Classification
CE	Compliant with the relevant CE product directives
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant

General Specifications

Antenna Type	Sector
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	PVC, UV resistant
Radiator Material	Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, total	4

Remote Electrical Tilt (RET) Information

Model with Factory Installed AISG 2.0 Actuator

HBXX-6513DS-A2M

Dimensions

Width	305 mm \| 12.008 in
Depth	166 mm \| 6.535 in
Length	695 mm \| 27.362 in
Net Weight, without mounting kit	7.9 kg \| 17.416 lb

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	1710 – 2170 MHz
Polarization	±45°

Electrical Specifications

Frequency Band, MHz	1710–1880	1850–1990	1920–2170
Gain, dBi	14.5	14.6	14.9
Beamwidth, Horizontal, degrees	67	66	64
Beamwidth, Vertical, degrees	14.8	14	13.4
Beam Tilt, degrees	0–12	0–12	0–12
USLS (First Lobe), dB	15	15	15
Front-to-Back Ratio at 180°, dB	30	30	30
Front-to-Back Total Power at 180° ± 30°, dB	26	27	27
CPR at Boresight, dB	22	22	22
CPR at Sector, dB	7	8	8
Isolation, Cross Polarization, dB	30	30	30
VSWR \| Return loss, dB	1.4 \| 15.6	1.4 \| 15.6	1.4 \| 15.6
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150
Input Power per Port, maximum, watts	350	350	350

Electrical Specifications, BASTA

Frequency Band, MHz	1710–1880	1850–1990	1920–2170
Gain by all Beam Tilts, average, dBi	14.2	14.3	14.6
Gain by all Beam Tilts Tolerance, dB	±0.8	±0.7	±0.7
Gain by Beam Tilt, average, dBi	0 ° \| 14.6; 6 ° \| 14.4; 12 ° \| 13.5	0 ° \| 14.7; 6 ° \| 14.5; 12 ° \| 13.7	0 ° \| 15.0; 6 ° \| 14.7; 12 ° \| 13.8
Beamwidth, Horizontal Tolerance, degrees	±3.7	±3.3	±3.5
Beamwidth, Vertical Tolerance, degrees	±1.4	±0.9	±1.1
USLS, beampeak to 20° above beampeak, dB	15	15	16
CPR at Boresight, dB	22	22	22
CPR at Sector, dB	7	8	8

Mechanical Specifications

Wind Loading @ Velocity, frontal	223.0 N @ 150 km/h (50.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	53.0 N @ 150 km/h (11.9 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	259.0 N @ 150 km/h (58.2 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Packaging and Weights

Width, packed	485 mm \| 19.094 in
Depth, packed	349 mm \| 13.74 in
Length, packed	1253 mm \| 49.331 in
Weight, gross	17.9 kg \| 39.463 lb

Click on image to enlarge.

Regulatory Compliance/Certifications

Agency	Classification
CE	Compliant with the relevant CE product directives
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
